T 65 Accessories

S 65 KG – HH – G 65 M Dispersing tool, for T 65 basic/digital

Product Code: IKA0010010767

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

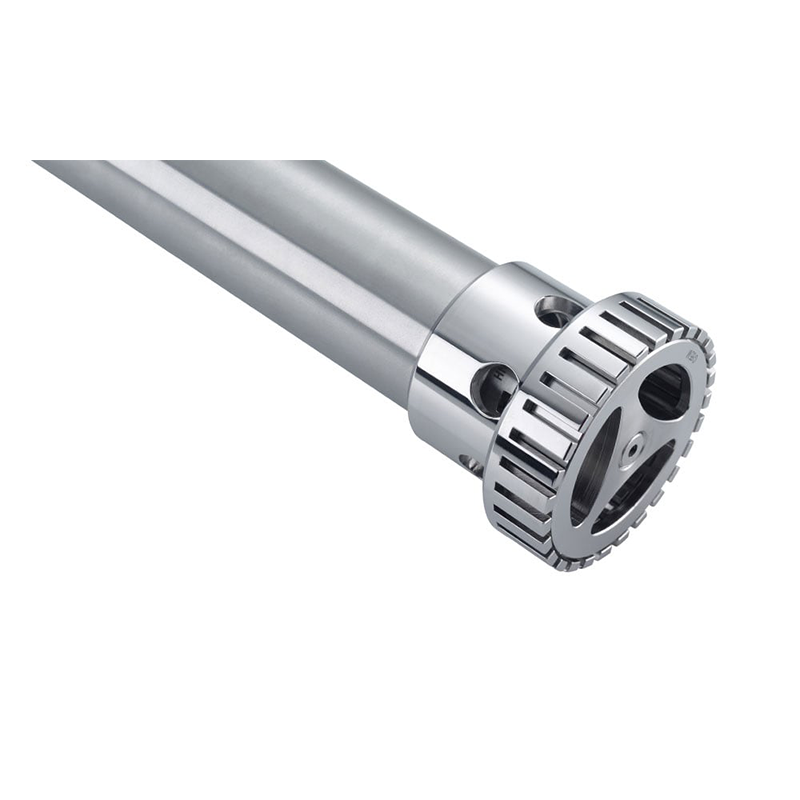

S 65 KG – HH – G 65 M Dispersing tool, for T 65 basic/digital

Suitable for dispersing instrument T 65 basic/digital
Working range: 2 - 40 l
Stator diameter: 65 mm
Immersion depth: 80 - 450 mm
Materials in contact with medium: FFPM, WC, AISI 316L
Suitable for solvents: yes
Max. temperature: 180 °C
Sterilization methods: all methods
Technical Specifications
Supplier IKA
Volume range (H2O) 2 - 40 l
Stator diameter 65 mm
Rotor diameter 58 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 9500 rpm
Circumferential speed max. 28.8 m/s
Immersion depth 80 - 450 mm
Shaft length 510 mm
Material in contact with medium FFPM, WC /AISI 316L
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 170 °C
Sterilization methods all methods
Vacuum 1 mbar
Pressure max. 6 bar
Ultimate fineness, suspensions 20 - 50 µm
Ultimate fineness, emulsions 5 - 15 µm
FDA conformity yes
Dimensions (W x H x D) 65 x 550 x 65 mm
Weight 4.41 kg
