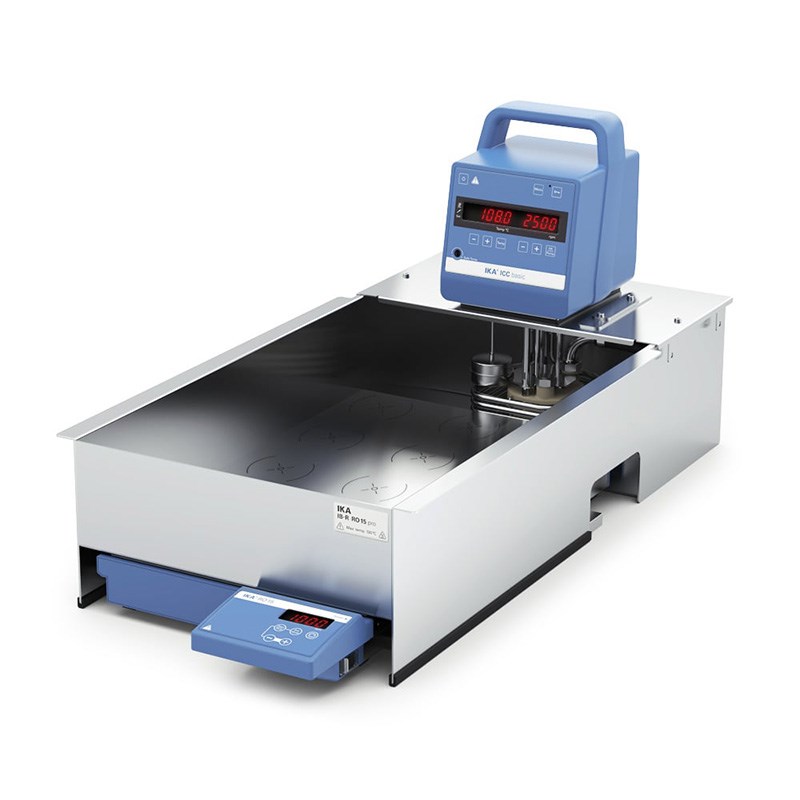

Immersion circulator with magnetic stirrer and bath, ICC basic IB R RO 15 proICC basic IB R RO 15 pro is an integrated temperature control and mixing system with 15 stirring positions for glass vessels up to 250 ml.
The system includes the ICC basic immersion circulator and the bath bridge BL.ICC as well as the pump connection set PDS.IB.R.RO with flow distributor for even temperature control of the stainless steel bath over the entire bath length. 15 laser markings make it easier to position the sample vessels in the bath.
- Max. temperature: 130 °C
- Bath opening (usable sample area): 489 x 313 x 98 mm
- Immersion depth of the samples: 35-75 mm
- Stainless steel bath for magnetic stirrer RO 15, size L, 25 l volume
- Total external dimensions (depth/ width/ height) : 678 x 361 x 355 mm*
In order to achieve temperatures >80 °C in the bath when using water as a tempering medium, we recommend our floating balls made of PP.
*Technical data are related to the temperature control device included in the package.
Package includes:
- ICC basic
- BL.ICC Large bridge
- IB R RO 15 pro
- RO 15
- PDS.IB.R.RO
