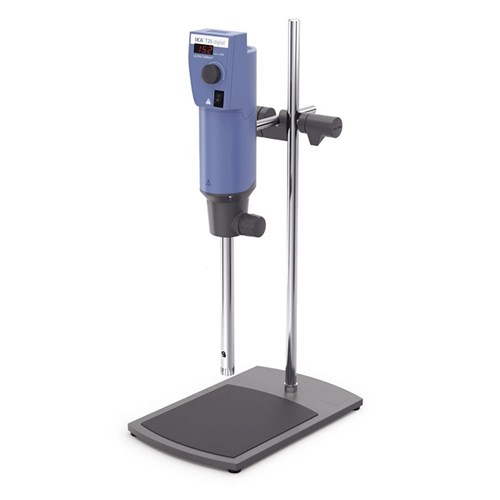

Disperser, T 25 digital ULTRA-TURRAX®

High-performance dispersing instrument for volumes from 1 – 2000 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements adds versatility. Applications ranges from homogenizing waste water samples, use in laboratory reactors, dispersion tasks under vacuum / pressure and sample preparation in medical research.

  • Digital speed display
  • Electronic speed control
  • Electronic overload protection
  • Stainless steel dispersing elements can be cleaned quickly and easily
  • Plastic disposable dispersing elements are available in two sizes
  • Error code display
  • Quiet operation
Package Includes:
  • 1 * T 25 digital ULTRA-TURRAX® - Disperser
  • 1 * S 25 N - 18 G - Dispersing Element Ø18 mm
  • 1 * R1826 Plate stand, H800 mm
  • 1 * R 182 Boss head clamp, clamping range Ø6-16 mm
Technical Specifications
Supplier IKA
Motor rating input 800 W
Motor rating output 500 W
Volume range (H2O) 0.001 - 2 l
Viscosity max. 5000 mPas
Speed range 3000 - 25000 rpm
Speed deviation 1 %
Speed adjustment stepless
Speed display LED
Noise without element 75 dB(A)
Extension arm diameter 13 mm
Extension arm length 160 mm
Process type batch
Permissible ON time 100 %
Dimensions (W x H x D) 87 x 271 x 106 mm
Weight 2.5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class according to DIN EN 60529 IP 20
Voltage 220 - 240 V
Frequency 50/60 Hz
Power input 800 W
