Extended viscocity range spindle, VOL-SP-11 (suitable for 11.0ml)

Product Code: IKA0025006851

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

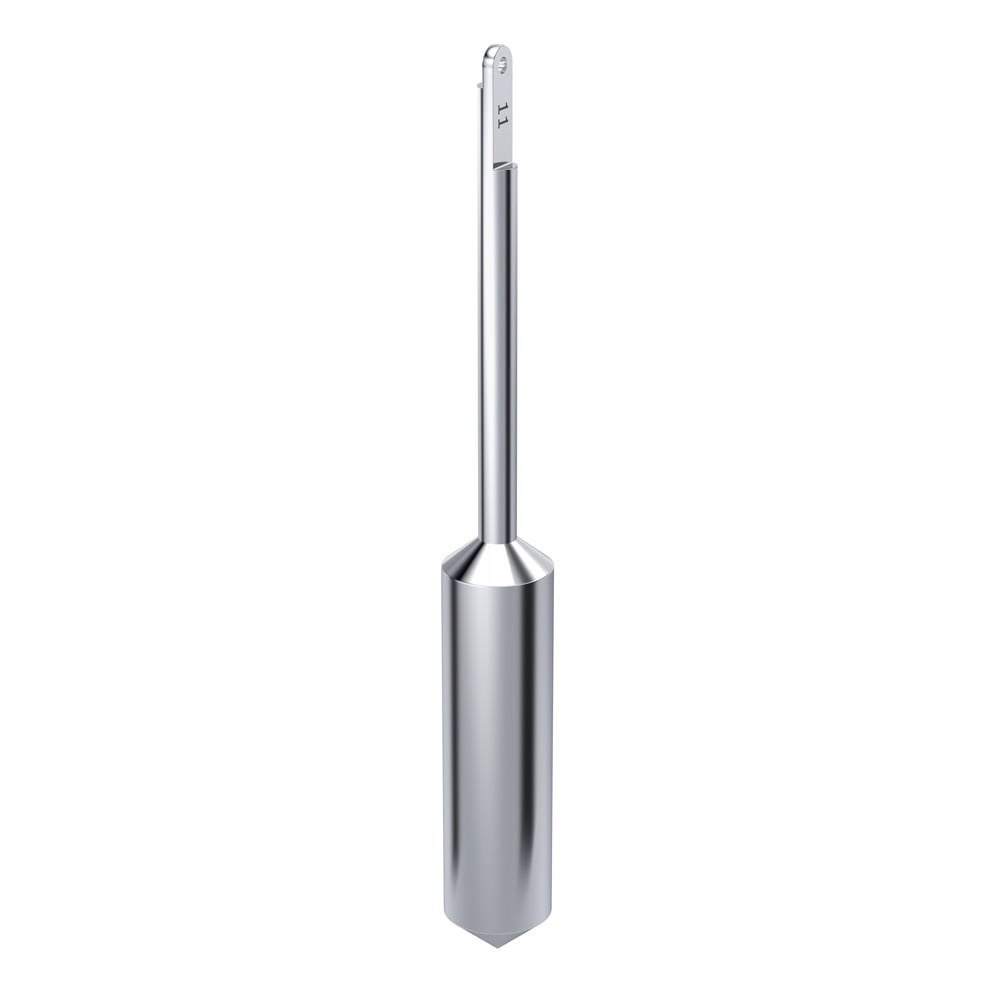

Extended viscocity range spindle, VOL-SP-11 (suitable for 11.0ml)

VOL-SP-11 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 11 ml
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 9.4 mm
Immersion depth 36.2 mm
Spindle length 77.3 mm
Sample volume 11 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 585.8 mPa.s
Max. FSR match ROTAVISC lo-vi 117163 mPa.s
Min. FSR match ROTAVISC me-vi 6250 mPa.s
Max. FSR match ROTAVISC me-vi 1250000 mPa.s
Min. FSR match ROTAVISC hi-vi I 12500 mPa.s
Max. FSR match ROTAVISC hi-vi I 2500000 mPa.s
Min. FSR match ROTAVISC hi-vi II 50000 mPa.s
Max. FSR match ROTAVISC hi-vi II 10000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 11 x 79 x 11 mm
Weight 0.021 kg
