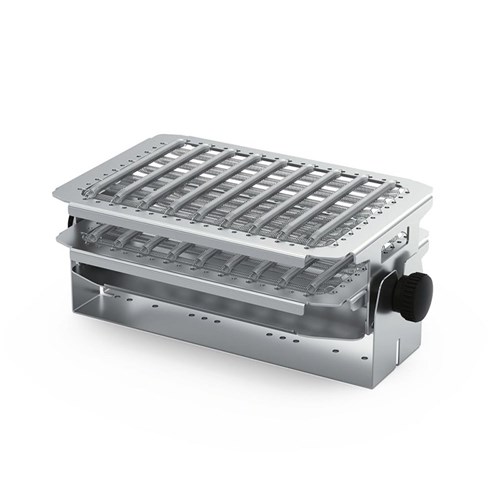

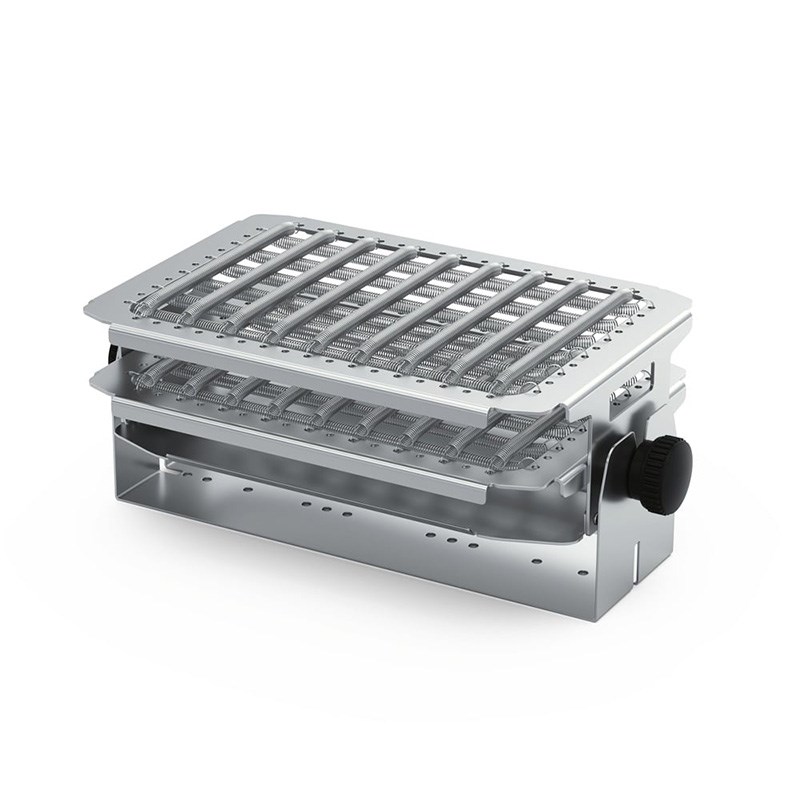

Adjustable tube rack for INC 125 FS, IO R 2.10
The adjustable tube rack IO R 2.10 can be attached to all IKA orbital and horizontal shakers in combination with the AS fixing clamp attachments as well as to the SP shaking platforms of the INC 125 FS incubator series.. Depending on the diameter, it offers space for up to 60 sample vessels. The innovative spring fixation allows a tube diameter range from 8 to 30 mm.
The knobs on the side make it easy to adjust the shaking angle of the samples. This allows adjustment of the gas-accessible surface of the samples in the tubes. The sample holder can be quickly released from the base using the knobs to facilitate transportation to the laboratory bench. The rack is made of stainless steel.
Number of sample tubes:
- 8 – 11 mm diameter: 60 pcs.
- 12 – 15 mm diameter: 40 pcs.
- 15 – 18 mm diameter: 28 pcs.
- 18 – 21 mm diameter: 20 pcs.
- 22 – 26 mm diameter: 15 pcs.
- 26 – 30 mm diameter: 8 pcs.
Number of racks (IO R 2.10) per shaking platform:
- AS 130.2: 1 rack
- AS 260.2: 2 racks
- AS 501.4: 4 racks
- AS 4000.2: 4 racks
- SP 20 / SP 25: 3 racks
