Disperser, T 18 mini digital ULTRA-TURRAX®

Product Code: IKA0020128585

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

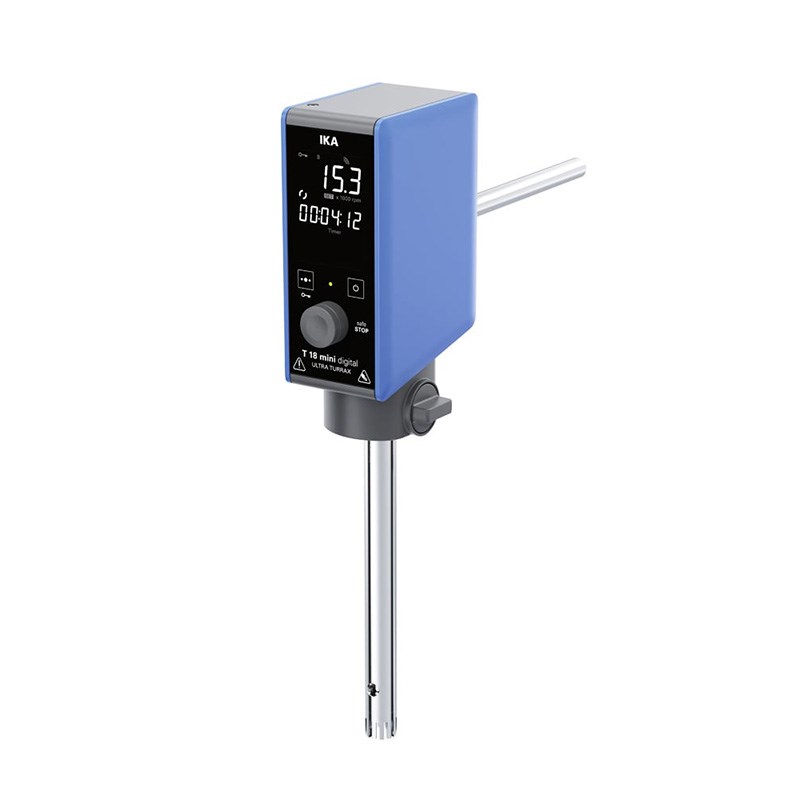

Disperser, T 18 mini digital ULTRA-TURRAX®

T 18 mini digital is an economical high-performance dispersing instrument with a wide speed range of 3000 - 25,000 rpm for working volumes of up to 1.5 liters (H20). It enables the user to work at high circumferential speeds even with small rotor diameters. The compact design of this disperser allows for operation in the tightest of spaces. A large TFT display ensures easy readability from a greater distance, even from outside a fume hood. This setup is best suited for simple applications homogenizing samples with low viscosity.
Technical Specifications
Supplier IKA
Motor rating input 210 W
Motor rating output 160 W
Volume range (H2O) 0.001 - 1.5 l
Viscosity max. 2000 mPas
Speed range 3000 - 25000 rpm
Speed deviation 3 %
Speed display LED
Speed adjustment stepless
Noise without element 75 dB(A)
Motor principle Brushless DC
Extension arm diameter 13 mm
Extension arm length 160 mm
Process type batch
Timer yes
Timer display LED
Permissible ON time 100 %
Dimensions (W x H x D) 66 x 186 x 100 mm
Weight 1.8 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 30
USB interface USB-C
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 210 W
Power input max. 250 W
Power input standby 3 W
DC Voltage 48 V=
Current consumption 4500 mA
