Temperature Sensors

H 66.51 Stainless steel sensor, glass-coated, for ETS-D5 and ETS-D6

Product Code: IKA0002735551

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

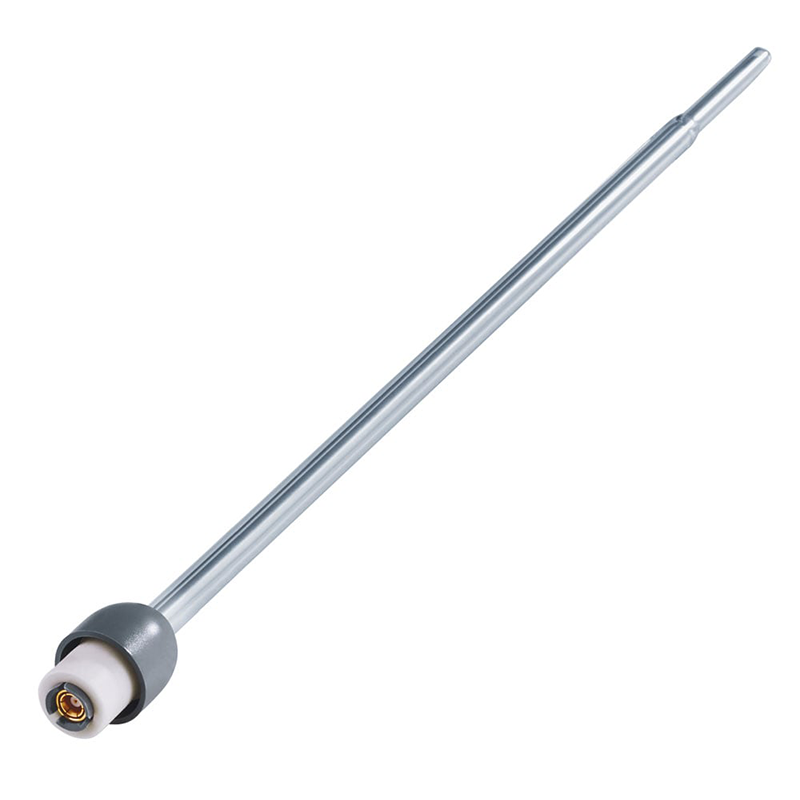

H 66.51 Stainless steel sensor, glass-coated, for ETS-D5 and ETS-D6

For use with ETS-D5 and ETS-D6, for work with aggressive media such as acid and alkaline solutions.

  • Depth of immersion 230 mm
  • Diameter 7 mm
  • Length 260 mm
  • Material borosilicate glass 3.3
Technical Specifications
Supplier IKA
Probe type Immersion probe
Sensor type PT1000 (DIN IEC 751 Class A)
Accuracy of temperature measurement ± (0,15 + 0,2% o.Mv.) K
Response time t9/10 10 sec
Temperature measuring range -10 - +400 °C
Material of probe tube stainless steel 1.4571
Coating of probe tube glass
Diameter of probe tube 6 mm
Length of probe tube 260 mm
Immersion depth min. 30 mm
Probe connection Radiall R114.005.000
Weight 0.057 kg
