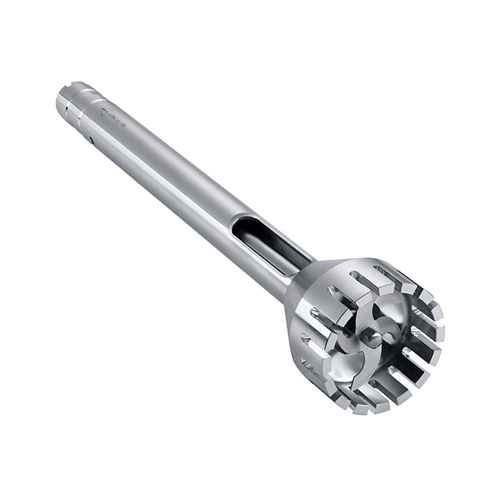

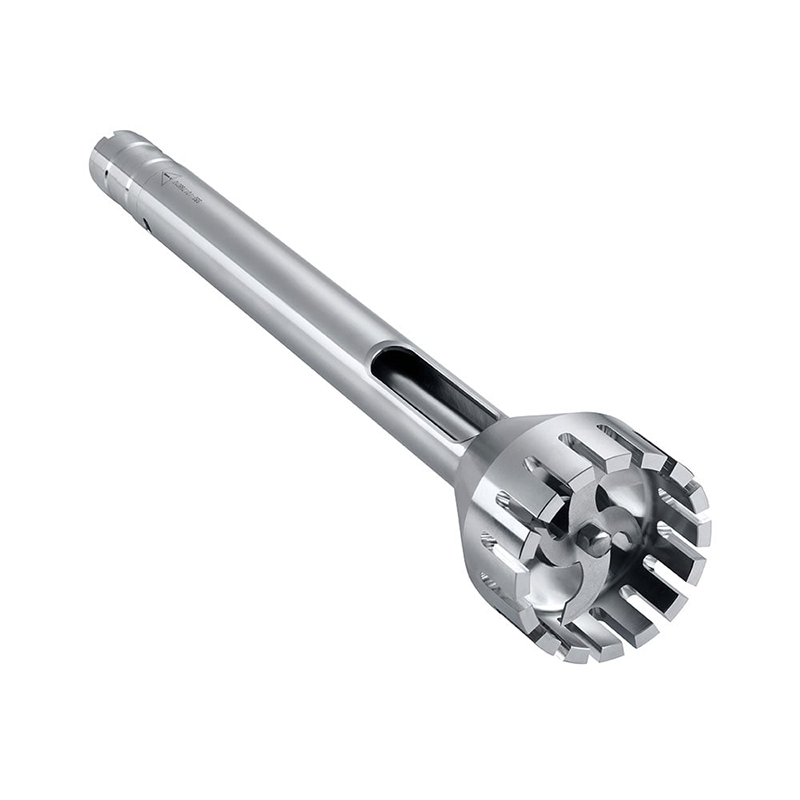

S 50 N - W 65 SK Cutting head, for T 50 digital

Suitable for dispersing instrument T 50 digital
To crush large pieces (up to 50 mm) of fibrous materials, such as vegetation, vegetables and fruit.
Working range: 1 - 10 l
Stator diameter: 65 mm
Immersion depth: 80 - 350 mm
Materials in contact with medium: PTFE, AISI 316L
Suitable for solvents: yes
Max. temperature: 180 °C
Sterilization methods: all methods
Technical Specifications
Supplier IKA
Volume range (H2O) 1 - 10 l
Stator diameter 65 mm
Rotor diameter 55 mm
allowable Speed max. 10000 rpm
Circumferential speed max. 28.8 m/s
Immersion depth 80 - 250 mm
Material in contact with medium PTFE, AISI 316L, AISI 301
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 180 °C
Sterilization methods all methods
Ultimate fineness, suspensions 50 - 200 µm
Ultimate fineness, emulsions 5 - 15 µm
FDA conformity yes
Weight 1.5457 kg
