T 25 easy clean Accessories

S 25 EC - C - 18 G - ST Dispersing tool, for T 25 easy clean digital/control

Product Code: IKA0025007399

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

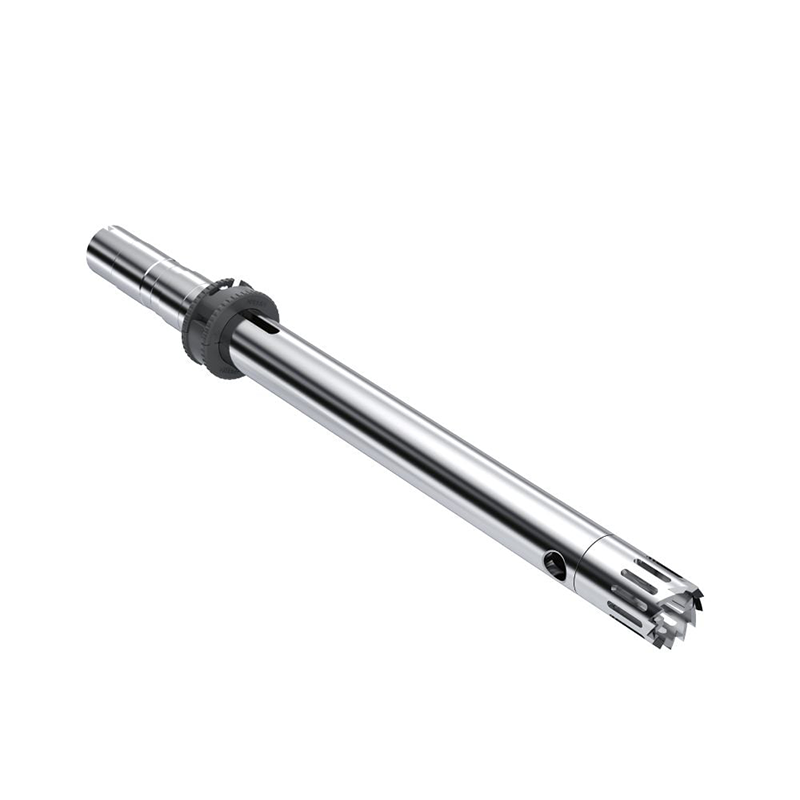

S 25 EC - C - 18 G - ST Dispersing tool, for T 25 easy clean digital/control

Dispersing tool S 25 EC-C-18G-ST is only compatible with the dispersers T 25 easy clean digital & control

Cleaning status for easy clean tool: By turning and lowering the clamp, the shaft and rotor can be dropped down till the whole rotor comes out of the stator. Then the shaft tube of the tool can also be completely rinsed inside.

Type of bearing: Ceramic plain bearing
Product-touching material: AISL 316L, ceramics
Solvent suitable: Yes
Sterilizable: Yes, all methods
Max. working temperature [°C]: 180
Shaft length [mm]: 191
Diameter stator / rotor [mm]: 18 / 13.4
Gap between [mm]: 0.25
Recommend emersion depth [mm]: 35 - 150
Recommend working range [mL]: 10 - 1500

Technical Specifications
Supplier IKA
Volume range (H2O) 0.01 - 1.5 l
Stator diameter 18 mm
Rotor diameter 13.4 mm
Gap between rotor and stator 0.25 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 17.5 m/s
Immersion depth 35 - 150 mm
Shaft length 191 mm
Material in contact with medium AISI 316L, ceramic
pH range 2 - 13
Suitable for solvents yes
Suitable for abrasive substances yes
Working temperature max. 180 °C
Sterilization methods all methods
Ultimate fineness, suspensions 10 - 50 µm
Ultimate fineness, emulsions 1 - 10 µm
Weight 0.4 kg
