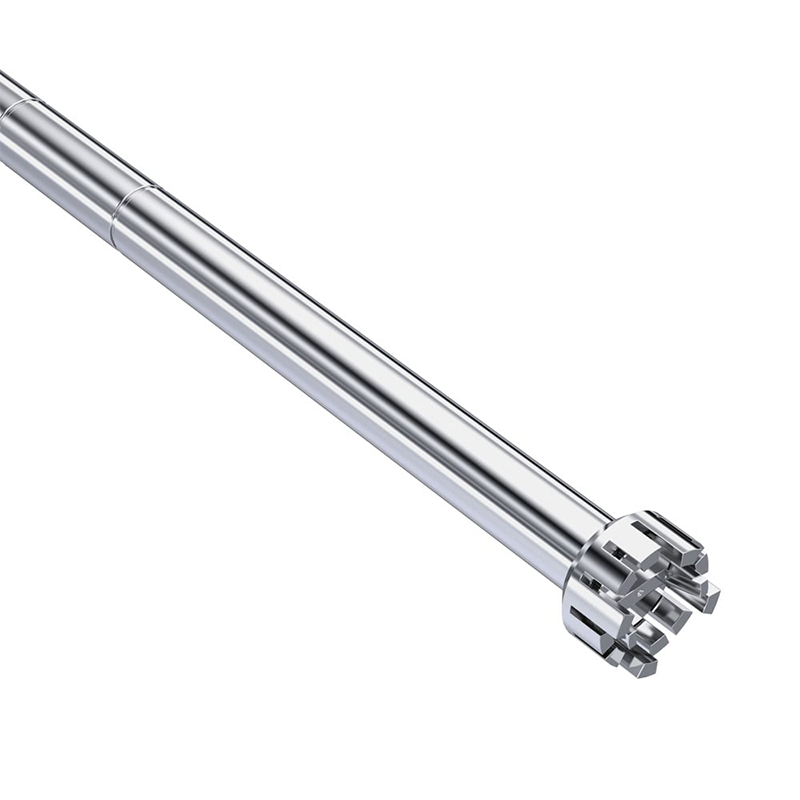

S 25 KD - LR - 30 G Dispersing tool, for T 25 digital/T 25 easy clean

S 25 KD - LR - 30 G Dispersing tool
The S 25 KD - LR - 30 G dispersing tool was specially developed to use with the the 5-liter laboratory reactor LR-5.ST. The G tool is a general purpose dispersing tool that can achieve relatively fine suspensions and emsulsions and can be used to process bigger feed sizes if solids need to be processed in a liquid medium. It is slightly longer than the standard dispersing tools, allowing for a deeper tool immersion within the reactors and the processing of even lower minimum sample volumes. In addition, this tool can be used in conjunction with vacuum conditions of up to 100 mbar.

Tool disassembly for cleaning and maintenance is made simpler with this new design.

Compatible with: T 25 digital, T 25 easy clean digital, T 25 easy clean control

Technical Specifications
Supplier IKA
Volume range (H2O) 0.05 - 5 l
Stator diameter 30 mm
Rotor diameter 22 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 28.8 m/s
Immersion depth 40 - 220 mm
Shaft length 267 mm
Material in contact with medium AISI 316L, PTFE, FFPM
pH range 2 - 13
Suitable for solvents yes
Temperature measuring range max. 150 °C
Sterilization methods all methods except hot air
Vacuum 100 mbar
Ultimate fineness, suspensions 15 - 50 µm
Ultimate fineness, emulsions 1 - 10 µm
FDA conformity yes
