T 25 Accessories

S 25 KD - LR - 25 F Dispersing tool, for T 25 digital/T 25 easy clean

Product Code: IKA0025007322

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

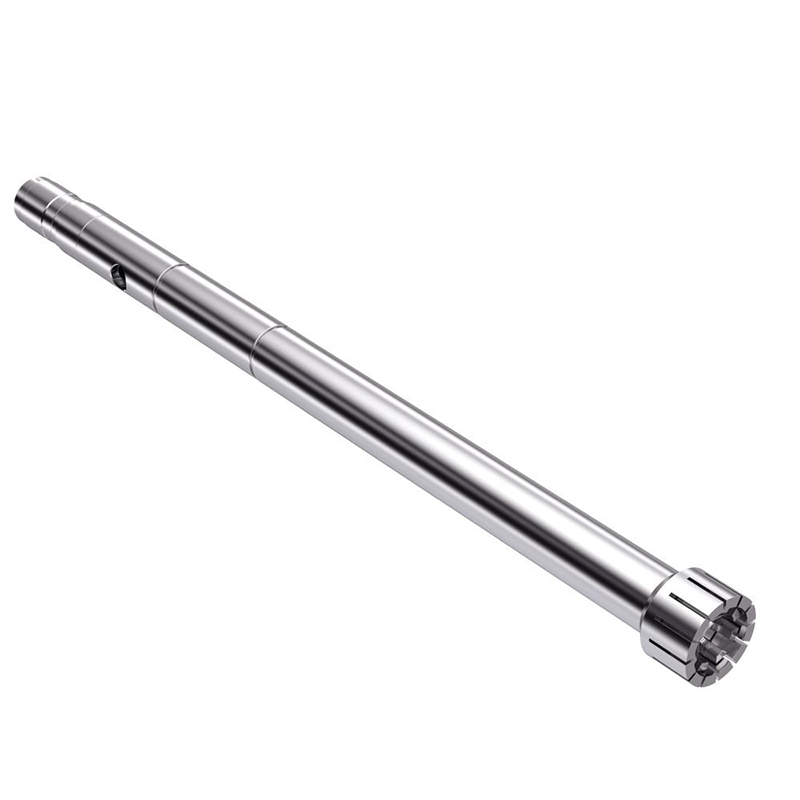

S 25 KD - LR - 25 F Dispersing tool, for T 25 digital/T 25 easy clean

The S 25 KD - LR - 25 F dispersing tool was specially developed to use with the IKA laboratory reactors. It is slightly longer than the standard dispersing tools, allowing for a deeper tool immersion within the reactors and the processing of even lower minimum sample volumes. In addition, this tool can be used in conjunction with vacuum conditions of up to 100 mbar.

The F tool is able to achieve an even finer ultimate particle size compared to the G tools.

Tool disassembly for cleaning and maintenance is made simpler with this new design.

Compatible with: T 25 digital, T 25 easy clean digital, T 25 easy clean control

Technical Specifications
Supplier IKA
Volume range (H2O) 0.1 - 2 l
Stator diameter 25 mm
Rotor diameter 18 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 23.6 m/s
Immersion depth 40 - 220 mm
Shaft length 267 mm
Material in contact with medium FFPM, PTFE, AISI 316L
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 150 °C
Sterilization methods all methods except hot air
Vacuum 100 mbar
Ultimate fineness, suspensions 5 - 25 µm
Ultimate fineness, emulsions 1 - 5 µm
FDA conformity yes
Weight 0.404 kg
