Tissue Homogenisers

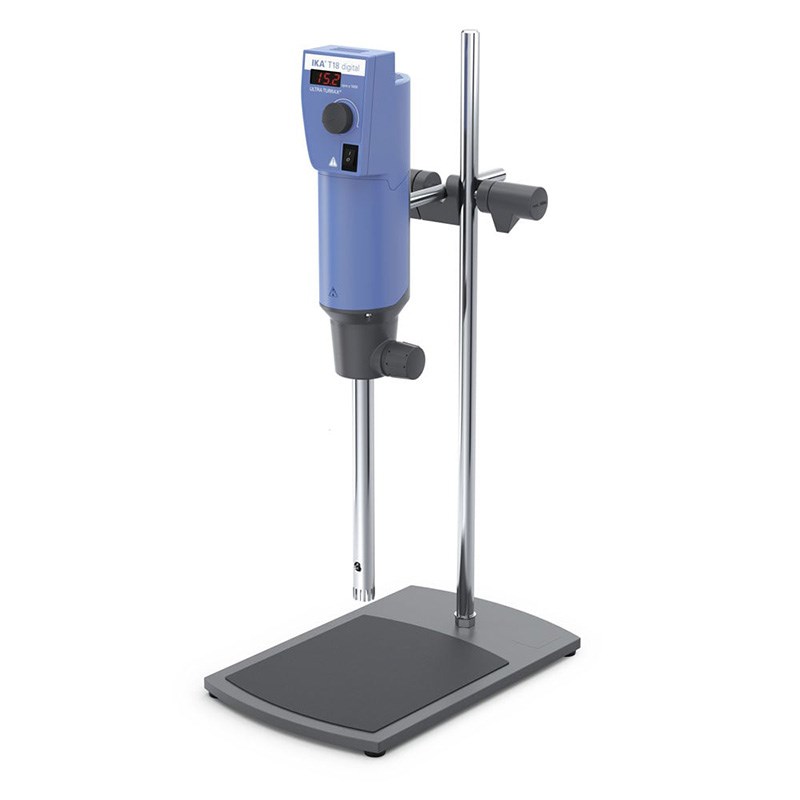

Disperser, T 18 digital ULTRA-TURRAX® Package

Product Code: IKA0009024705

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview
Competitively priced dispersing instrument for volumes from 1 – 1500 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.
  • Digital speed display
  • Electronic speed control
  • Electronic overload protection
  • Stainless steel dispersing elements can be cleaned quickly and easily
  • Plastic disposable dispersing elements are available in two sizes
  • Error code display
  • Quiet operation
Package Includes:
  • T 18 digital ULTRA-TURRAX®
  • S 18 N - 19 G Dispersing tool
  • R 1826 Plate stand
  • R 182 Boss head clamp
Technical Specifications
Supplier IKA
Motor rating input 500 W
Motor rating output 300 W
Volume range (H2O) 0.001 - 1.5 l
Viscosity max. 5000 mPas
Speed range 3000 - 25000 rpm
Speed deviation 1 %
Speed adjustment stepless
Speed display LED
Noise without element 75 dB(A)
Extension arm diameter 13 mm
Extension arm length 160 mm
Process type batch
Permissible ON time 100 %
Dimensions (W x H x D) 87 x 271 x 106 mm
Weight 2.5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class according to DIN EN 60529 IP 20
Voltage 220 - 240 V
Frequency 50/60 Hz
Power input 500 W
