Standard spindle, SP-6

Product Code: IKA0025006833

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

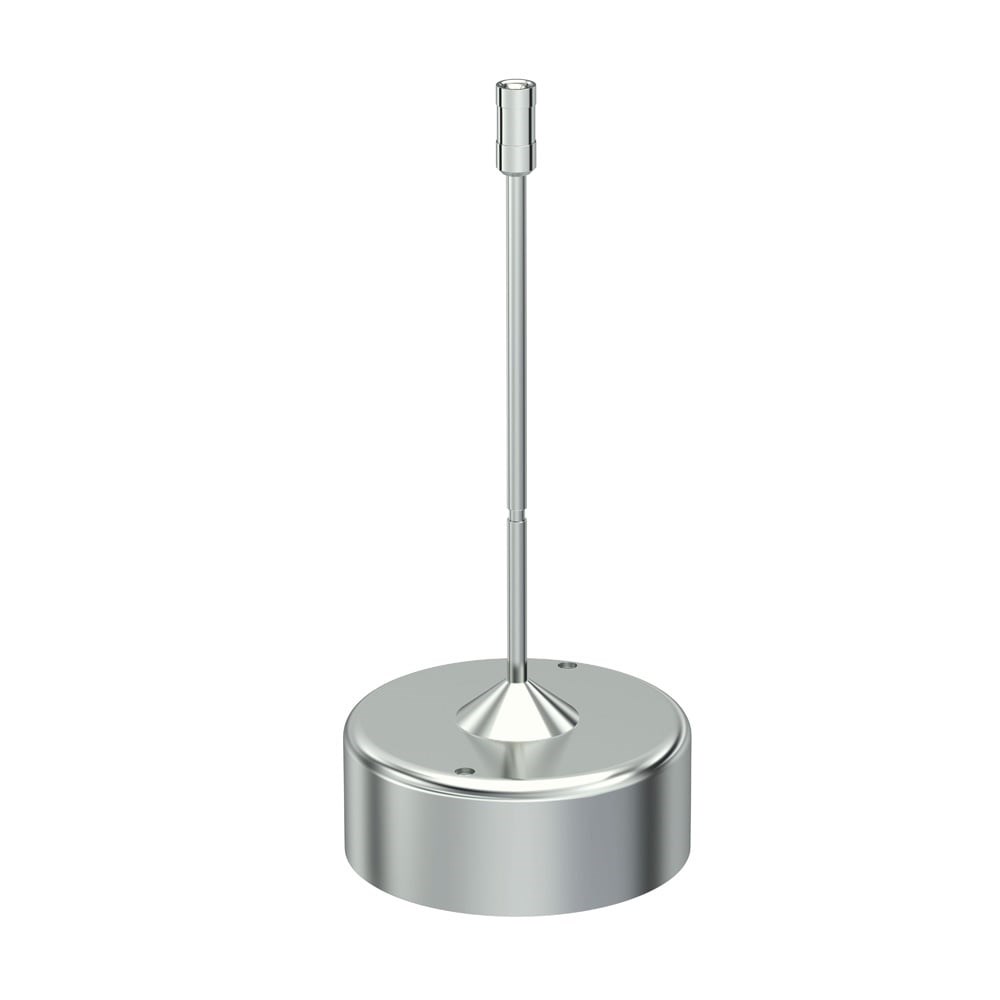

Standard spindle, SP-6

The optional standard spindle SP-6 is suitable for measurement in an extended viscosity range. It is intended to be used in combination with the rotary viscometers ROTAVISC me-vi, hi-vi I or hi-vi II Complete or ROTAVISC me-vi, hi-vi I or hi-vi II Advanced.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Quick plug connector yes
Hook connector yes
Diameter 56.3 mm
Immersion depth 61.1 mm
Spindle length 133 mm
Mounting Bracket yes
Sample container: 600mL beaker low
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 15 mPa.s
Max. FSR match ROTAVISC lo-vi 937.3 mPa.s
Min. FSR match ROTAVISC me-vi 200 mPa.s
Max. FSR match ROTAVISC me-vi 10000 mPa.s
Min. FSR match ROTAVISC hi-vi I 400 mPa.s
Max. FSR match ROTAVISC hi-vi I 20000 mPa.s
Min. FSR match ROTAVISC hi-vi II 1600 mPa.s
Max. FSR match ROTAVISC hi-vi II 80000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 58 x 135 x 58 mm
Weight 0.066 kg
