Standard spindle, SP-5

Product Code: IKA0025006832

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

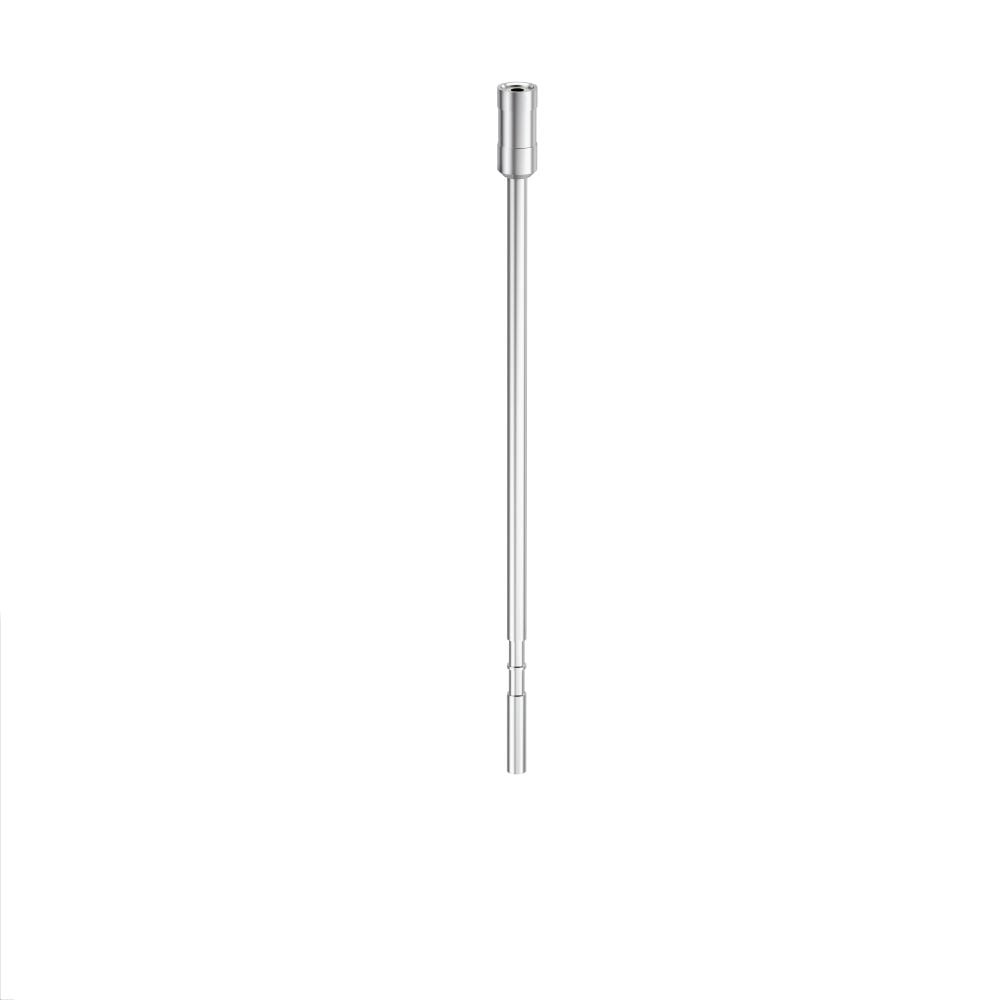

Standard spindle, SP-5

The optional standard spindle SP-5 is suitable for measurement in an extended viscosity range. It is intended to be used in combination with the rotary viscometers ROTAVISC lo-vi Complete or ROTAVISC lo-vi Advanced.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Quick plug connector yes
Hook connector yes
Diameter 3.2 mm
Immersion depth 18.4 mm
Spindle length 115 mm
Mounting Bracket yes
Sample container: 600mL beaker low
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 5998.7 mPa.s
Max. FSR match ROTAVISC lo-vi 1199744 mPa.s
Min. FSR match ROTAVISC me-vi 64000 mPa.s
Max. FSR match ROTAVISC me-vi 12800000 mPa.s
Min. FSR match ROTAVISC hi-vi I 128000 mPa.s
Max. FSR match ROTAVISC hi-vi I 25600000 mPa.s
Min. FSR match ROTAVISC hi-vi II 512000 mPa.s
Max. FSR match ROTAVISC hi-vi II 102400000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 5 x 117 x 5 mm
Weight 0.004 kg
