Single spiral spindle, S-SP

Product Code: IKA0025006843

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

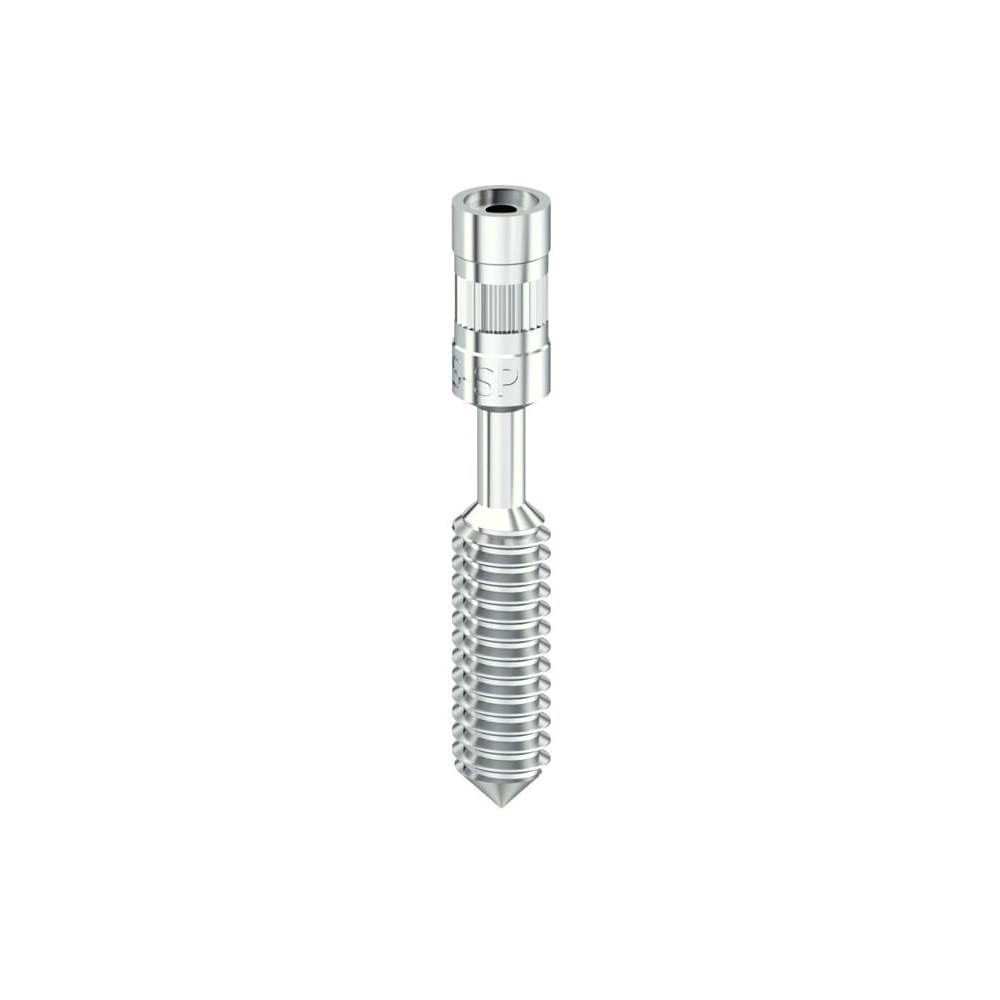

Single spiral spindle, S-SP

Single S-SP spiral spindle.

The spindle can only be used in combination with the SAS-1 spiral spindle adapter set (Ident. No.: 0025000377).

Technical Specifications
Supplier IKA
Spindle geometry Spiral
Connection Thread M2.5 LH
Diameter 6.4 mm
Immersion depth 21 mm
Spindle length 41.2 mm
Mounting Bracket yes
Sample container: Specified chamber
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 492.1 mPa.s
Max. FSR match ROTAVISC lo-vi 98417 mPa.s
Min. FSR match ROTAVISC me-vi 5250 mPa.s
Max. FSR match ROTAVISC me-vi 1050000 mPa.s
Min. FSR match ROTAVISC hi-vi I 10500 mPa.s
Max. FSR match ROTAVISC hi-vi I 2100000 mPa.s
Min. FSR match ROTAVISC hi-vi II 42000 mPa.s
Max. FSR match ROTAVISC hi-vi II 8400000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 8 x 43 x 8 mm
Weight 0.008 kg
