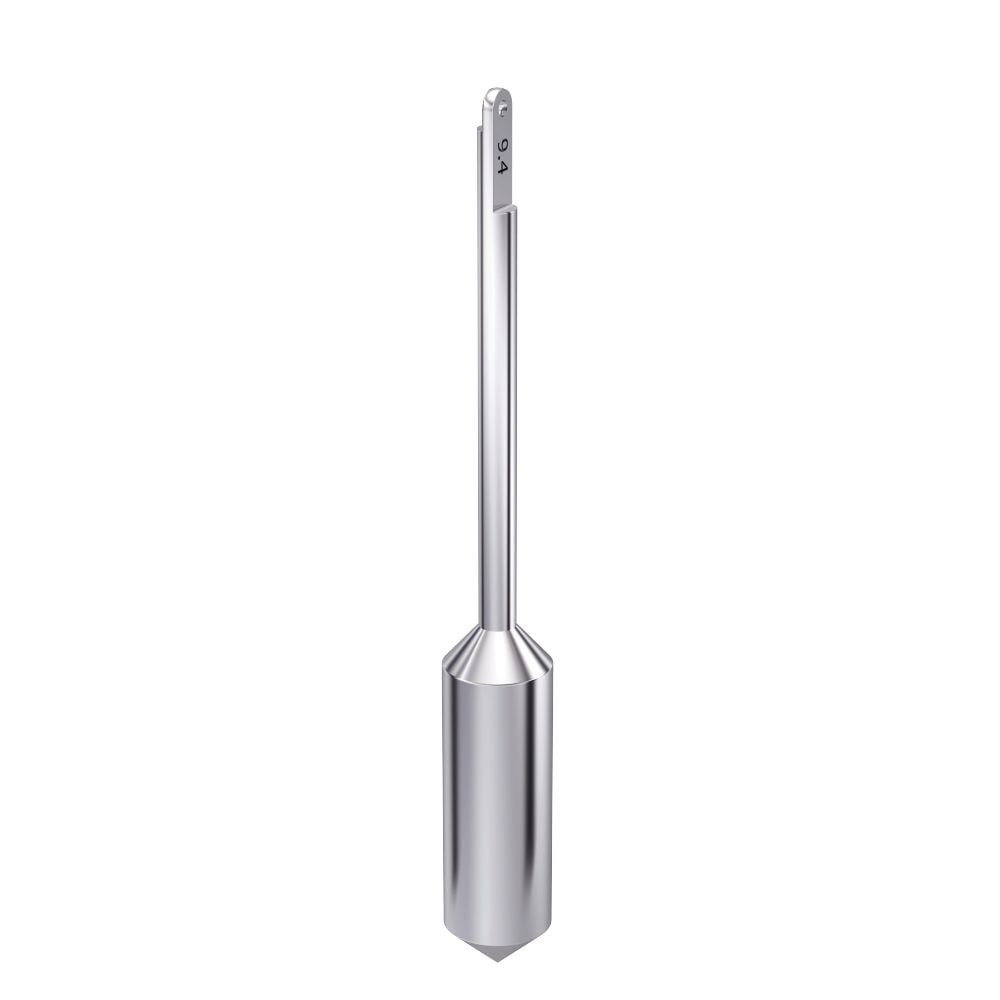

Extended viscocity range spindle, VOL-SP-9.4 (suitable for 9.4ml)

VOL-SP-9.4 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 9.4 ml.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 9.4 mm
Immersion depth 32 mm
Spindle length 77.3 mm
Sample volume 9.4 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 299.9 mPa.s
Max. FSR match ROTAVISC lo-vi 59987 mPa.s
Min. FSR match ROTAVISC me-vi 3200 mPa.s
Max. FSR match ROTAVISC me-vi 640000 mPa.s
Min. FSR match ROTAVISC hi-vi I 6400 mPa.s
Max. FSR match ROTAVISC hi-vi I 1280000 mPa.s
Min. FSR match ROTAVISC hi-vi II 25600 mPa.s
Max. FSR match ROTAVISC hi-vi II 5120000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 11 x 79 x 11 mm
Weight 0.018 kg
