Overview

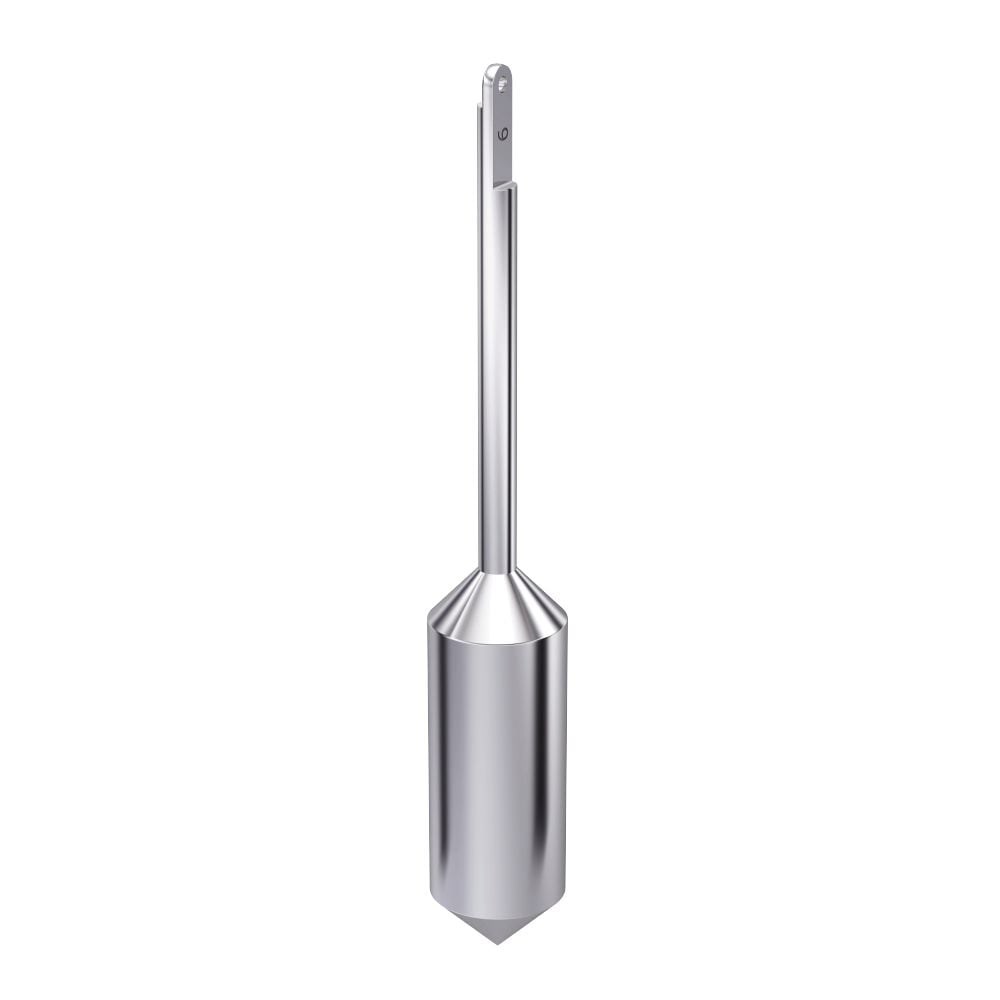

Extended viscocity range spindle, VOL-SP-9 (suitable for 9.0ml)

VOL-SP-9 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 9 ml.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 11.8 mm
Immersion depth 35.4 mm
Spindle length 77.5 mm
Sample volume 9 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 150 mPa.s
Max. FSR match ROTAVISC lo-vi 29994 mPa.s
Min. FSR match ROTAVISC me-vi 1600 mPa.s
Max. FSR match ROTAVISC me-vi 320000 mPa.s
Min. FSR match ROTAVISC hi-vi I 3200 mPa.s
Max. FSR match ROTAVISC hi-vi I 640000 mPa.s
Min. FSR match ROTAVISC hi-vi II 12800 mPa.s
Max. FSR match ROTAVISC hi-vi II 2560000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 14 x 80 x 14 mm
Weight 0.028 kg
