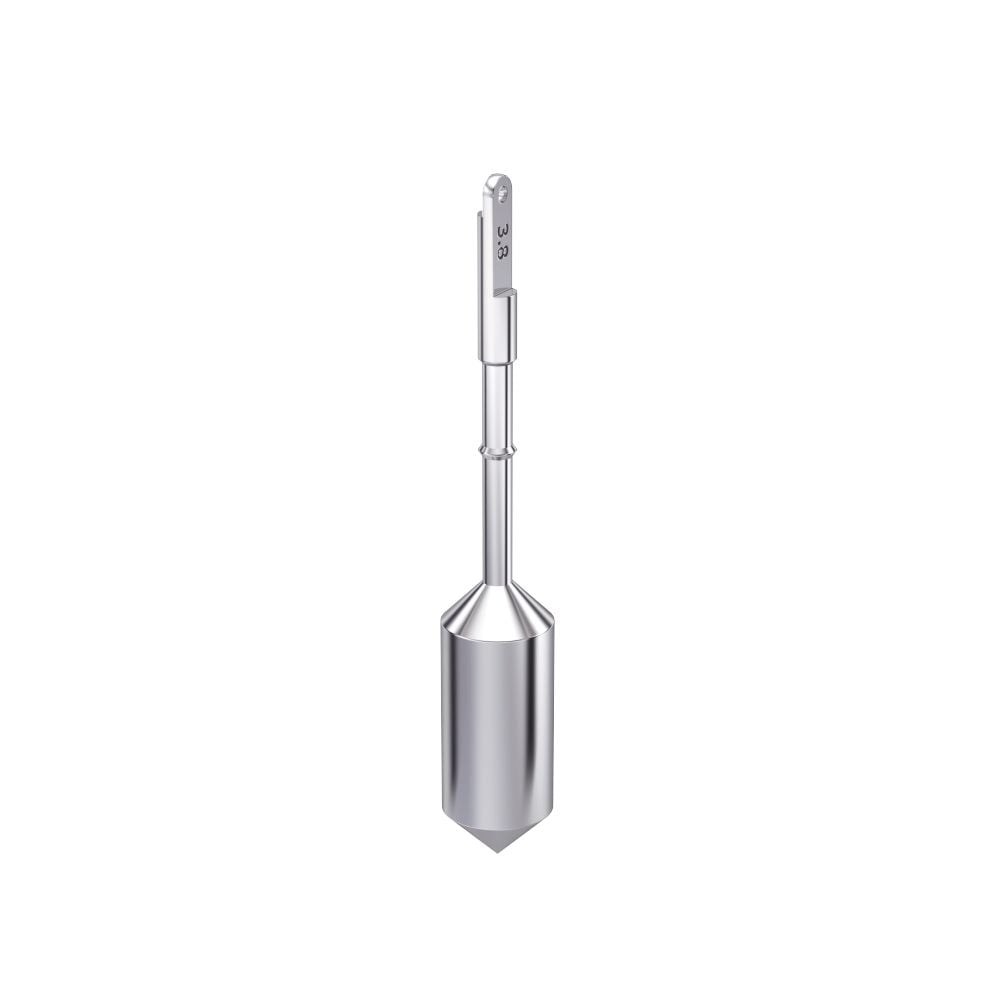

Extended viscocity range spindle, VOL-SP-3.8 (suitable for 3.8ml)

VOL-SP-3.8 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 3.8 ml.

It is required to use the 3.8 ml chamber VOL-C-RTD-3.8 in combination with the VOL-SP-3.8 spindle. The chamber is available as accessory.

Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 9.6 mm
Immersion depth 36.8 mm
Spindle length 60 mm
Sample volume 3.8 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 234.3 mPa.s
Max. FSR match ROTAVISC lo-vi 46865 mPa.s
Min. FSR match ROTAVISC me-vi 2500 mPa.s
Max. FSR match ROTAVISC me-vi 500000 mPa.s
Min. FSR match ROTAVISC hi-vi I 5000 mPa.s
Max. FSR match ROTAVISC hi-vi I 1000000 mPa.s
Min. FSR match ROTAVISC hi-vi II 20000 mPa.s
Max. FSR match ROTAVISC hi-vi II 4000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 12 x 62 x 12 mm
Weight 0.013 kg
