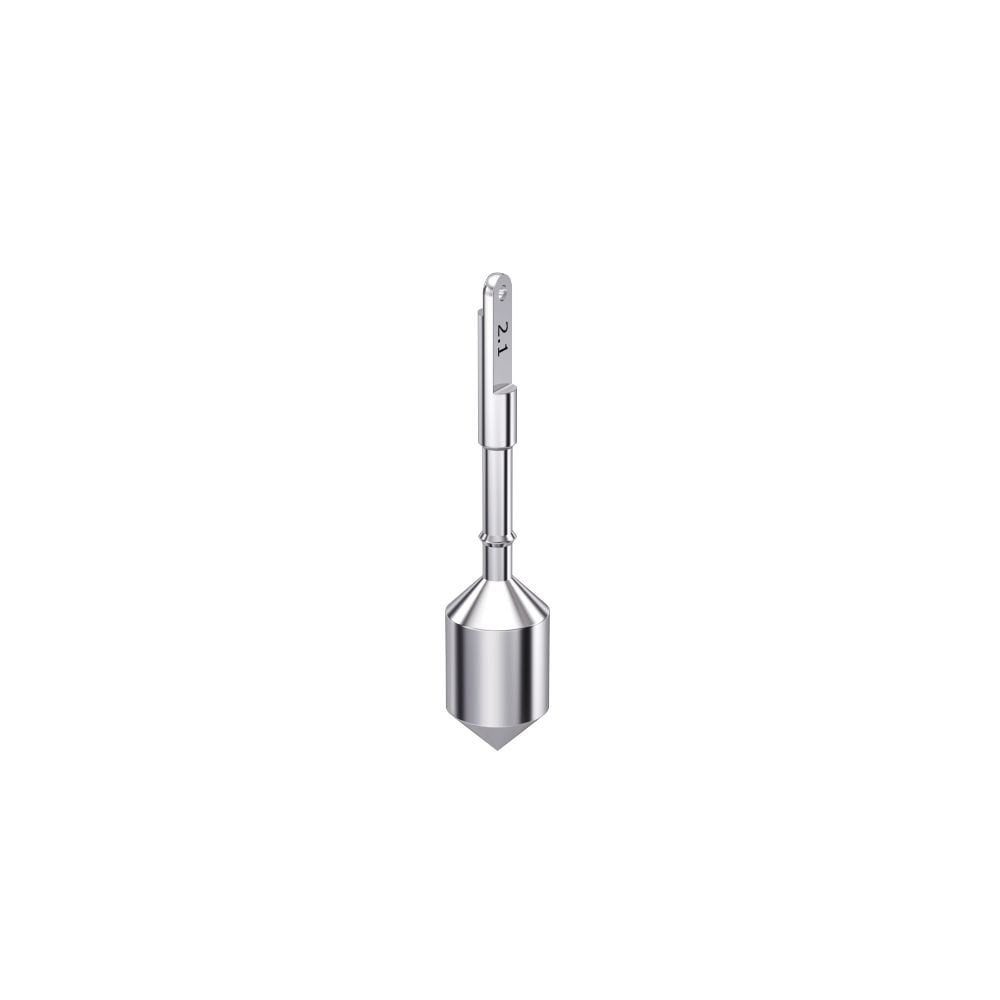

Extended viscocity range spindle, VOL-SP-2.1

VOL-SP-2.1 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 2.1 ml.

It is required to use the 2.1 ml chamber VOL-C-RTD-2.1 in combination with the VOL-SP-2.1 spindle. The chamber is available as accessory.

Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 8.7 mm
Immersion depth 19.5 mm
Spindle length 42 mm
Sample volume 2.1 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 585.8 mPa.s
Max. FSR match ROTAVISC lo-vi 117163 mPa.s
Min. FSR match ROTAVISC me-vi 6250 mPa.s
Max. FSR match ROTAVISC me-vi 1250000 mPa.s
Min. FSR match ROTAVISC hi-vi I 12500 mPa.s
Max. FSR match ROTAVISC hi-vi I 2500000 mPa.s
Min. FSR match ROTAVISC hi-vi II 50000 mPa.s
Max. FSR match ROTAVISC hi-vi II 10000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 11 x 44 x 11 mm
Weight 0.007 kg
