Extended viscocity range spindle, VOL-SP-10.4 (suitable for 10.4ml)

Product Code: IKA0025006850

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

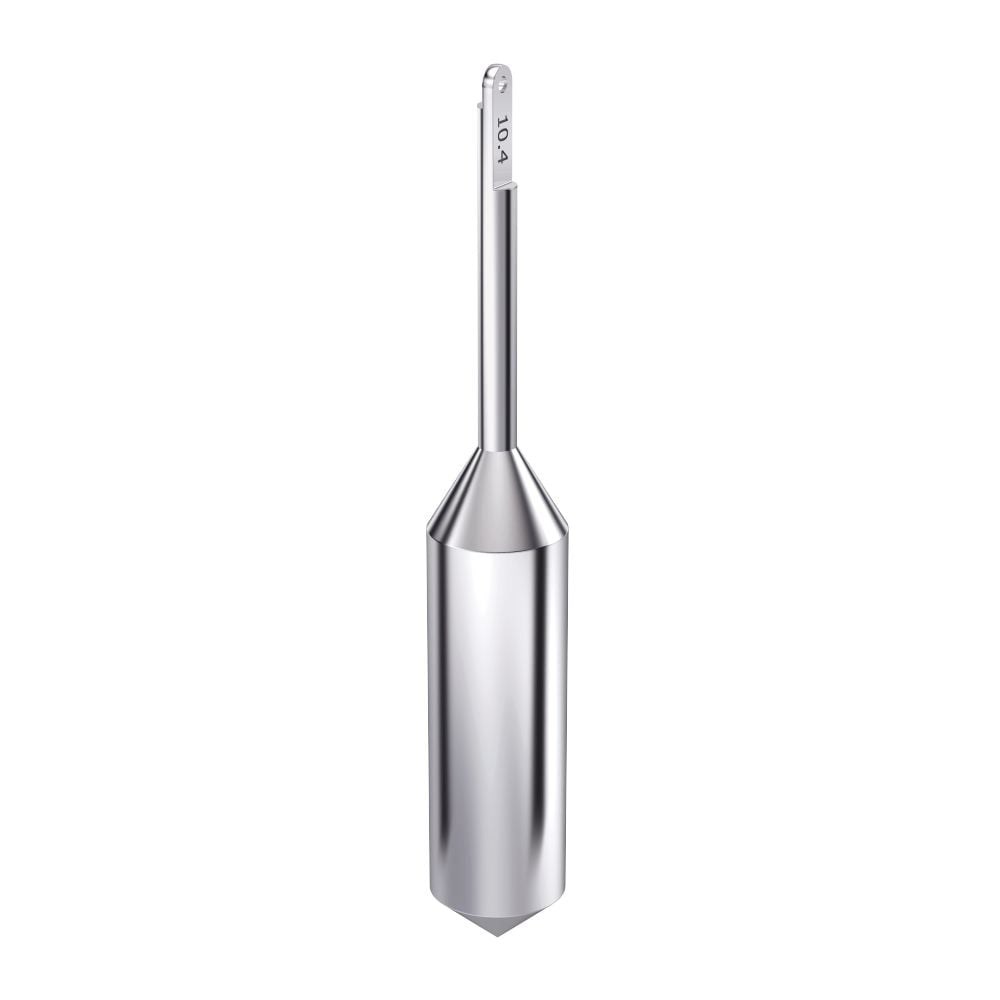

Extended viscocity range spindle, VOL-SP-10.4 (suitable for 10.4ml)

VOL-SP-10.4 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 10.4 ml.
Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 11.8 mm
Immersion depth 45.3 mm
Spindle length 76.7 mm
Sample volume 10.4 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 117.2 mPa.s
Max. FSR match ROTAVISC lo-vi 23433 mPa.s
Min. FSR match ROTAVISC me-vi 1250 mPa.s
Max. FSR match ROTAVISC me-vi 250000 mPa.s
Min. FSR match ROTAVISC hi-vi I 2500 mPa.s
Max. FSR match ROTAVISC hi-vi I 500000 mPa.s
Min. FSR match ROTAVISC hi-vi II 10000 mPa.s
Max. FSR match ROTAVISC hi-vi II 2000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 14 x 79 x 14 mm
Weight 0.035 kg
