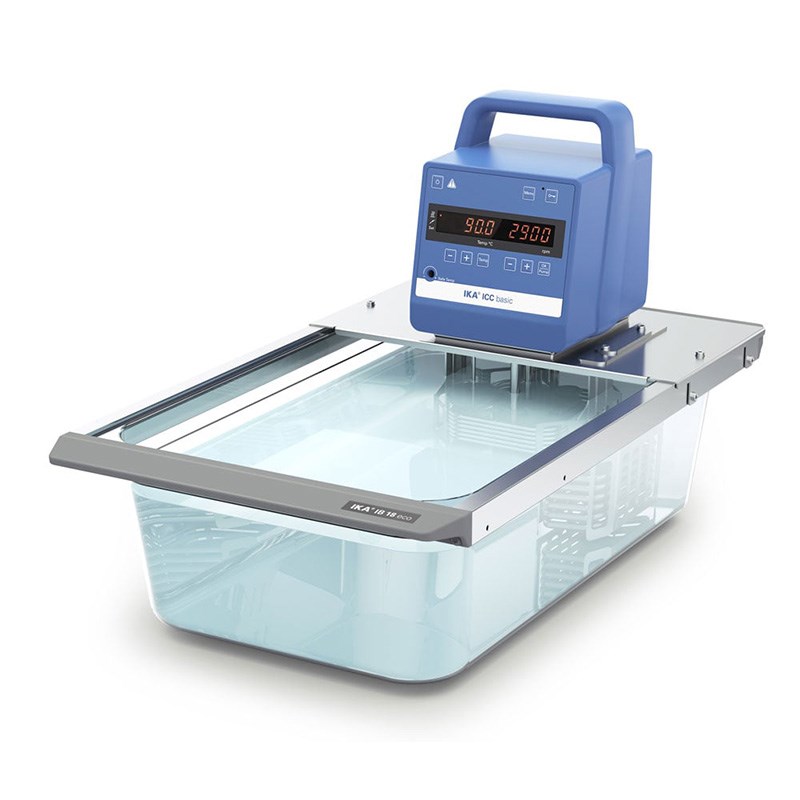

Heating bath circulator, package 18 l eco bath, ICC basic eco 18
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.
Includes:
- ICC basic Compact Immersion Circulator
- IB 18 eco Plastic bath (size L)
- BL.ICC Large bridge
total: 338 x 584 x 349 mm
bath opening: 245 x 305 mm *
max. bath opening: 286 x 325 mm **
Immersion depth. 85 mm–125 mm
*Dimensions to set plate at the bottom of bath.
** Maximum bath opening dimensions at the upper edge of the bath
Max. temperature in the plastic bath (“eco” series): 100°C (water only)
Technical data relates to the temperature control instrument included in the package
Package includes:
- ICC basic eco 18
- ICC basic
- IB 18 eco
- BL.ICC Large bridge
