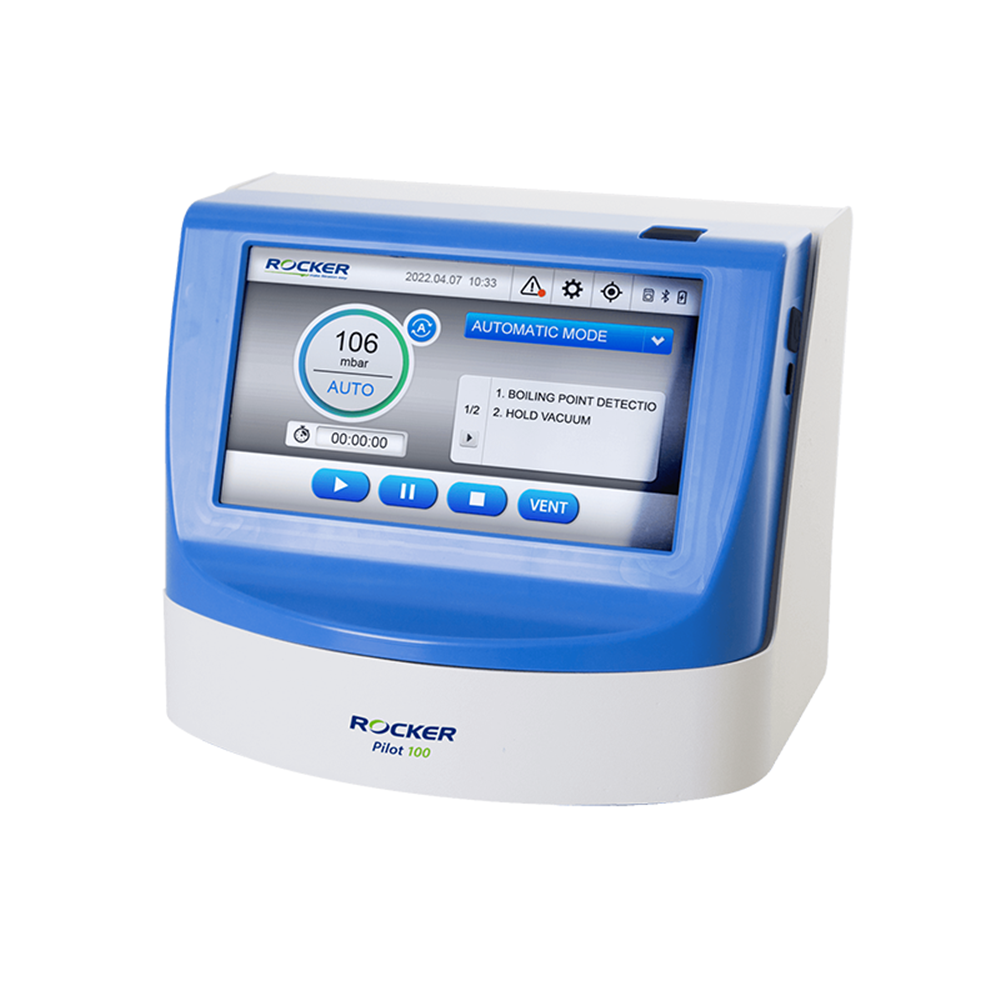

Rocker Pilot 100 Vacuum Controller

The Rocker Pilot 100 is a versatile vacuum controller designed for precise, automated vacuum control in laboratory and industrial applications. Its intuitive touch panel and automatic evaporation detection make vacuum processes easy to set up and monitor, while compatibility with a wide range of vacuum sources provides flexibility across different applications.

Features:

  • Automatic evaporation detection and vacuum adjustment to help prevent bumping
  • User-friendly graphical interface with up to 10 programmable steps
  • Touch panel can be operated while wearing thick laboratory gloves
  • Compatible with diaphragm, piston and rotary vane pumps
  • Detachable control panel with remote operation capability
  • Suitable for laboratory and industrial environments
  • CE, UKCA and RoHS certified
  • 1-year warranty
Technical Specifications
Supplier Rocker Scientific
Power Input DC24V, 1A
Resolution 1 Digit
Pressure Display mbar, hPa, torr
Display 7" touch screen
Measuring Range 1100 ~ 0 mbar abs.
Measurement Accuracy ± 2 mbar (after adjustment, constant temp.)
Setting Range 1013 ~ 0 mbar
Housing Material Plastic
Venting Valve Yes
Auto-cleaning Yes
Power 15W
Hose Barb ID 8 ~ ID 10
Safety  Over-pressure Protection, Error Message
Dimensions (LxWxH) 21 x 20 x 18 cm
Net Weight 2.2 kg
