Overview

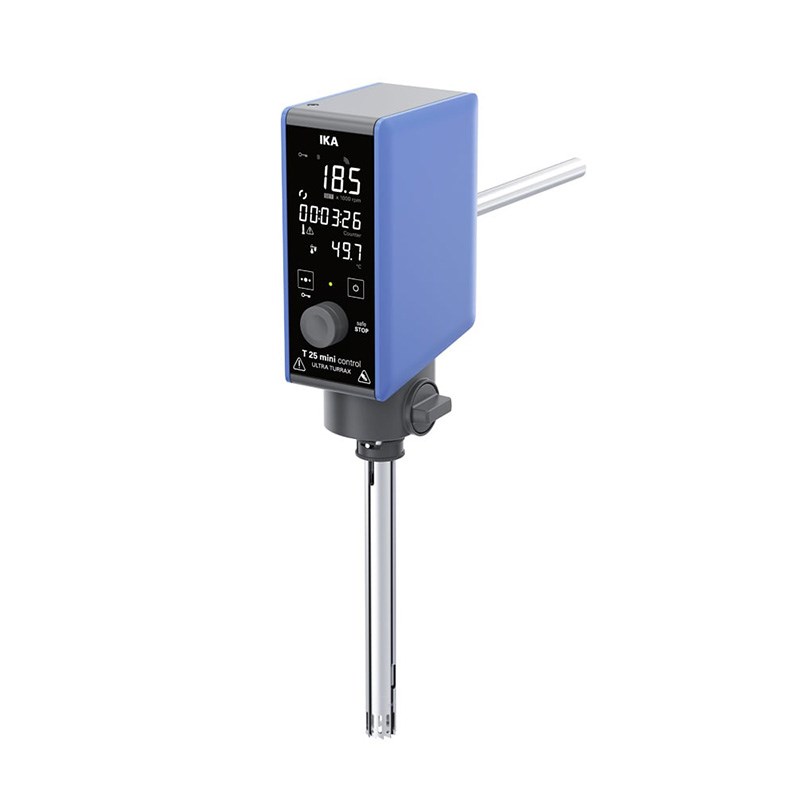

Disperser, T 25 mini control

The T 25 mini control is a high-performance dispersing instrument with a wide speed range of 600 - 25,000 rpm for working volumes of up to 1.5 liters (H20). It enables the user to work at high circumferential speeds even with small rotor diameters. The compact design of this disperser allows for operation in the tightest of spaces. A large TFT display ensures easy readability from a greater distance, even from outside a fume hood. This setup is best suited for simple applications homogenizing samples with low viscosity.

A broad choice of dispersing elements guarantee a wide range of applications for efficient emulsification, homogenization, dispersing and suspending as well as reduction of particle sizes to the micrometer range.

  • Digital speed display and adjustment
  • Brushless motor for improved motor lifetime, quieter operation and more hygienic applications
  • Timer function for unattended operation
  • Dispersing elements: stainless steel option with a high chemical resistance or plastic options that come in two sizes
  • Quick insert for easy change of dispersing elements for convenient cleaning and maintenance
  • USB interface for remote control and parameter documentation with the IKA labworldsoft® software
Package includes:
  • T 25 mini control ULTRA-TURRAX®
  • S 25 EC - T - C - 18 G Dispersing tool
  • R 1826 Plate stand
  • R 182 Boss head clamp
Technical Specifications
Supplier IKA
Motor rating input 210 W
Motor rating output 160 W
Volume range (H2O) 0.001 - 1.5 l
Viscosity max. 2000 mPas
Speed range 600 - 25000 rpm
Deviation of speed measurement n > 3000rpm ±3 %
Deviation of speed measurement n < 3000rpm ≤±100 rpm
Speed display LED
Speed adjustment stepless
Noise without element 75 dB(A)
Motor principle Brushless DC
Extension arm diameter 13 mm
Extension arm length 160 mm
Process type batch
Temperature display yes
Temperature measuring range 0 - 125 °C
Temperature measurement resolution 0.1 K
Accuracy of temperature measurement ±1 K
Timer yes
Timer display LED
Permissible ON time 100 %
Dimensions (W x H x D) 66 x 186 x 100 mm
Weight 1.8 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 30
RS 232 interface yes
USB interface USB-C
WPAN interface yes
WiFi Interface yes
Ethernet interface yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 210 W
Power input max. 250 W
Power input standby 3 W
DC Voltage 48 V=
Current consumption 4500 mA
