Magnetic Heater Stirrers

Magnetic stirrer with heating, ceramic plate, C-MAG HS 4

Product Code: IKA0003581005

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

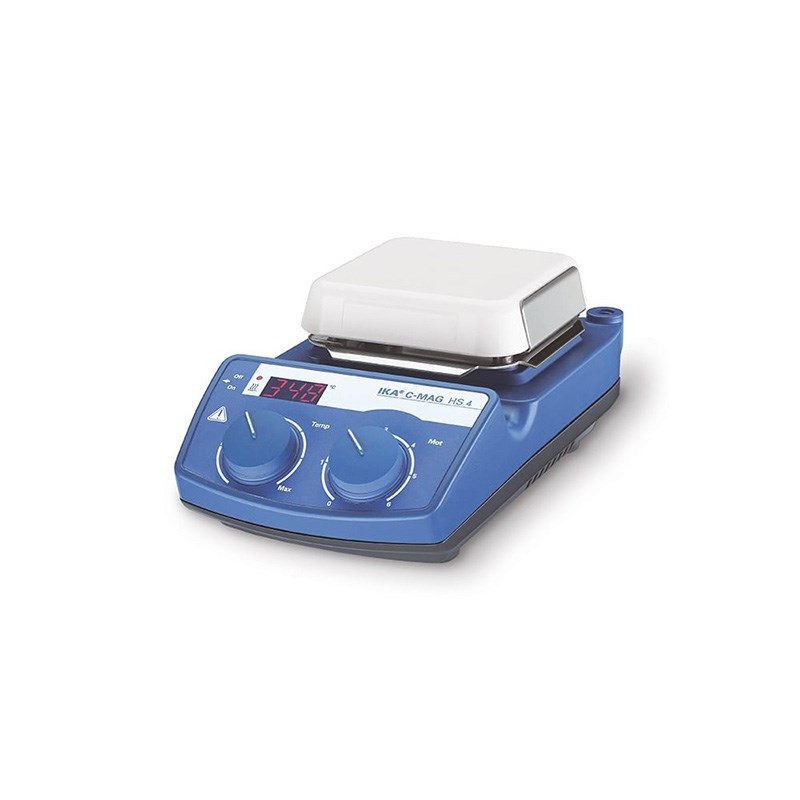

Magnetic stirrer with heating, ceramic plate, C-MAG HS 4

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

  • Powerful motor for stirring quantities of up to 5 l (H2O)
  • Fixed safety circuit of 550 °C
  • Hot Top indicator >> hot surface warning to prevent burns!
  • Exact temperature setting via digital display (LED)
  • Digital error code display
  • Elevated control panel for protection against leaking liquids
Package includes:
  • C-MAG HS 4
  • IKAFLON® 20 Magnetic stirring bar
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
Technical Specifications
Supplier IKA
Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 5 l
Maximum load 7.5 kg
Motor rating output 1.5 W
Direction of rotation left
Speed adjustment scale 0 - 6
Speed range 100 - 1500 rpm
Stirring bar length max. 30 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +2 K
Heat output 250 W
Temperature display set-value LCD
Temperature display actual-value LCD
Heating temperature range 50 - 500 °C
Heat control stepless
Temperature setting resolution of heating plate 1 K
Connection for ext. temperature sensor PT1000
Temperature setting resolution of medium 1 K
Fixed safety circuit 550 °C
Set-up plate material ceramic
Set-up plate dimensions 100 x 100 mm
Heating rate (1l H2O in H1500) 2.5 K/min
Dimensions (W x H x D) 150 x 105 x 260 mm
Weight 3.566 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 230 V
Frequency 50/60 Hz
Power input 270 W
