Magnetic Heater Stirrers

Magnetic stirrer with heating, RH basic

Product Code: IKA0005019705

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

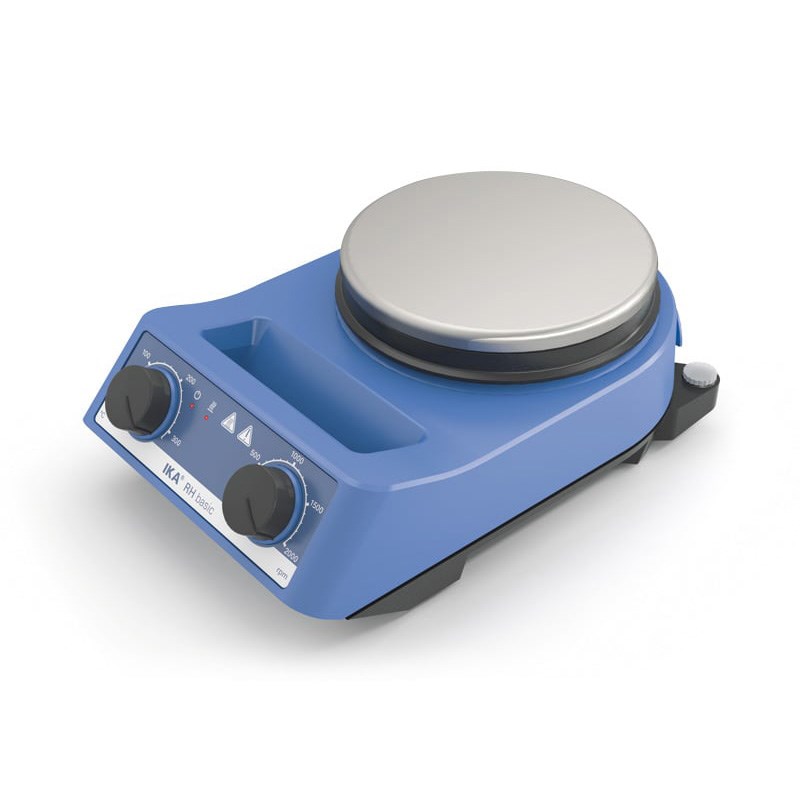

Magnetic stirrer with heating, RH basic

Newly designed, economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.

  • Soft-start of the stirring motor
  • Includes M 10 thread for a support rod
  • Strong magnetic field and wide speed range for volumes up to 15 liters

Package includes:
  • RH basic
  • IKAFLON® 20 Magnetic stirring bar
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
  • H 102 Cover for RH basic
  • H 102.1 Protection handle
  • Screwdriver (use for safety circuit)
Technical Specifications
Supplier IKA
Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 15 l
Maximum load 20 kg
Motor rating output 2 W
Direction of rotation left
Speed display set-value scale
Speed adjustment Turning knob
Speed range 100 - 2000 rpm
Stirring bar length 20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +12 K
Heat output 600 W
Temperature display set-value scale
Temperature unit °C
Heating temperature range 50 - 320 °C
Heat control scale
Temperature setting range 0 - 320 °C
Connection for ext. temperature sensor ETS-D5
Characteristics in the medium with temperature sensor 1l M50 Oil at H1500
Adjustable safety circuit 100 - 360 °C
Set-up plate material stainless steel 1.4301
Set-up plate dimensions Ø 135 mm
Heating rate (1l H2O in H1500) 6 K/min
Dimensions (W x H x D) 160 x 100 x 250 mm
Weight 3.135 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 230 V
Frequency 50/60 Hz
Power input 620 W
