Magnetic Heater Stirrers

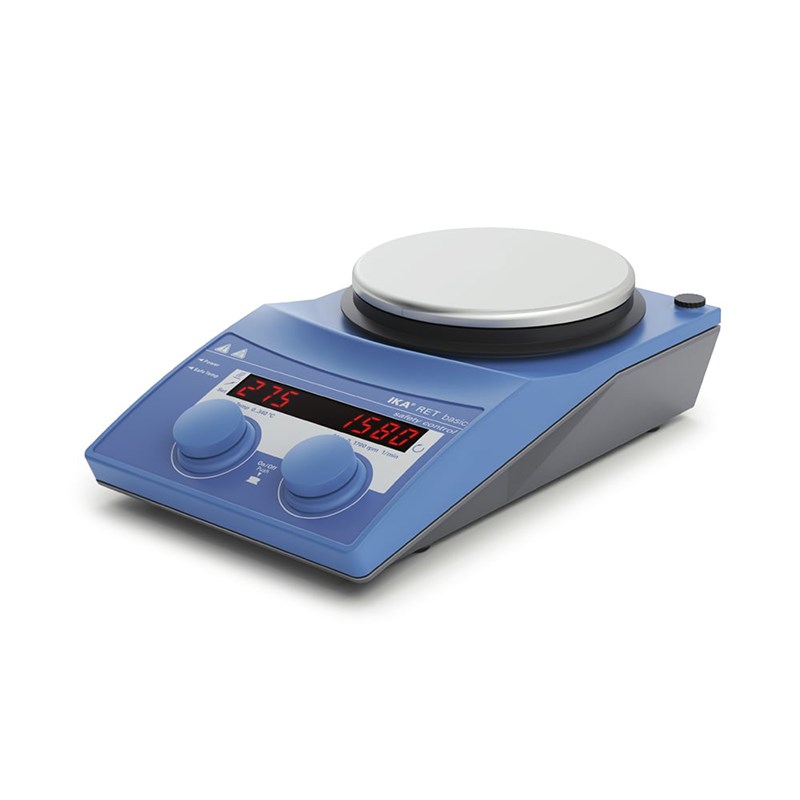

Magnetic stirrer with heating, RET basic

Product Code: IKA0003622005

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview
Magnetic stirrer with heating, RET basic

Wide speed range from 0/50 - 1700 rpm
Integrated temperature control
Incl. PT 1000 temperature sensor (PT 1000.60)
Exact temperature and speed setting via digital display, even when switched off
Set safety temperature limit displayed digitally
Hot Top indicator >> hot surface warning to prevent burns!
Digital error code display

  • With adjustable safety circuit of heating plate temperature (50 - 380 °C)
  • Safety magnetic stirrer with heating, suitable for unsupervised operation
  • Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
  • High level of safety thanks to improved heat control technology
  • Enclosed assembly (IP 42) guarantees long service life
  • Very broad temperature range (RT - 340 °C)
  • Extremely fast heating times
  • Electronic speed control
  • High magnetic adhesion
  • Automatic switch-off of the heating function if the connected external temperature sensor is not immersed in the medium.
  • Function selectable, timeout time adjustable (Error 5).

Package includes:
  • RET basic
  • PT 1000.60 Temperature sensor, stainless steel
  • IKAFLON® 20 Magnetic stirring bar
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
  • Screw driver
  • Protection cover
Technical Specifications
Supplier IKA
Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 20 l
Maximum load 25 kg
Motor rating output 9 W
Direction of rotation right
Speed display set-value LED
Speed display actual-value LED
Speed adjustment Turning knob
Speed range 50 - 1700 rpm
Setting accuracy speed 10 rpm
Stirring bar length 20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +15 K
Heat output 600 W
Temperature display set-value LED
Temperature display actual-value LED
Temperature unit °C
Heating temperature range Room temp. + device self heating - 340 °C
Heat control Turning knob
Temperature setting range 0 - 340 °C
Temperature setting resolution of heating plate 1 K
Connection for ext. temperature sensor PT1000
Temperature setting resolution of medium 1 K
Adjustable safety circuit 50 - 360 °C
Set-up plate material stainless steel 1.4301
Set-up plate dimensions Ø 135 mm
Sensor in medium detection yes
Heating rate (1l H2O in H1500) 7 K/min
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) ±1 K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) ±0.5 K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) ±0.2 K
Dimensions (W x H x D) 160 x 95 x 270 mm
Weight 2.5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 42
Voltage 220 - 230 V
Frequency 50/60 Hz
Power input 630 W
