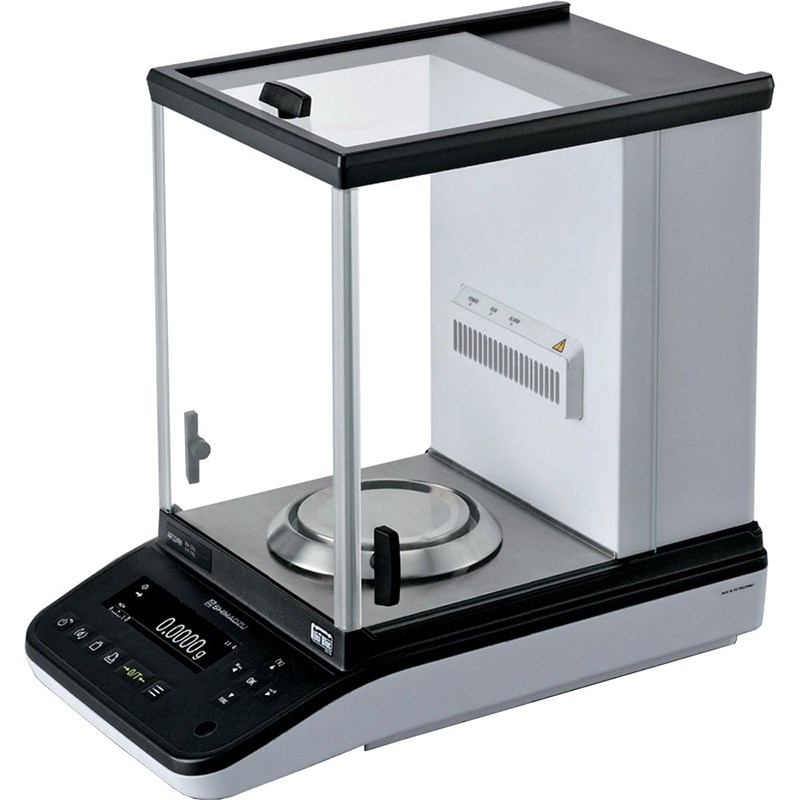

Overview:

Provides High-Speed Response and High Stability

The new AP-AD series models not only offer excellent basic performance, such as fast weighing times of about two seconds and high measurement stability that minimizes errors, but also include new functionality that improves convenience, such as automatic doors and touchless sensors.

New automatic door functionality makes weighing operations even more convenient.

Specifications:

Capacity: 135g

Readability: 0.01mg (0.00001)

Pan Size: ø91mm

With Auto calibration

Includes:

• Includes Buffer Preparation Mode

• Includes a Recipie function

• Includes multi stand for measuring a wide range of tubes, rods and other items

• Includes USB device and a USB host as a standard

• Includes a periodic inspection support function

• Optional Ionizer which eliminates the influence of static electricity

Features:

High Speed- Fast measurement significantly improves operational efficency with UniBloc AP Technology:

• Shimadzu analytical balances boast a one-piece UniBloc weighing sensor, which is now even more advanced. The response time is reduced to about 1/5 the time of previous models.

Smart Automatic Door™ Improve Work Efficiency:

• Doors Opened/Closed Smoothly and Quickly

• Adjustable Opening/Closing Distance Using Automatic Learning Functionality

• Doors can be opened/closed by three methods, depending on preference:Open/close by waving a hand over the left and right infrared sensors that enables door operation without touching the balance. Open/close by pressing the left and right buttons on the front. That allows opening/closing doors with a satisfying click sensation.Open/close using the manual trigger function.The glass doors open/close automatically after the doors are moved about 10 mm. That enables intuitive door operation.

Touchless Sensors Enable Hygienic Operation:

• The balance can be operated without touching the main unit.

• That is especially helpful as infectious disease measures or when handling hazardous substances.

• It enables non-contact weighing operations without touching any operating keys. With the multi-function mode setting specified, a total of four different functions can be executed depending on how long hands are held over the left and right touchless sensors. That is perfect for ensuring safety by not contacting the unit when handling toxic substances and enables the balance to be operated smoothly while wearing gloves.

Adjustable Internal Windbreak Plate Improves Stability and Response:

• The windbreak suppresses factors that can cause measurement error, so that stable weighing can be performed by anyone.

• Convection and air flow effects can be suppressed by minimizing the weighing chamber volume. New W-AD series 0.01 mg models are equipped standard with an adjustable windbreak plate inside the main unit. It can be raised or lowered according to the various containers or samples involved to provide the optimal weighing environment.

Equipped Standard with a STABLO™-AP Ionizer:

• This ionizer eliminates the influence of static electricity to achieve reliable measurements without requiring tedious steps.

• The STABLO-AP ionizer can reduce static electricity on samples, containers, and other surfaces.

• Static electricity can be eliminated quickly and easily by pressing just one button to increase reproducibility and operational efficiency.

• The ionizer uses the AC method to provide super ior long- term stability without worry of reverse charging.

• That ensures higher measurement reliability than ever before.

High Speed - Fast weighing response:

• Fast measurement significantly improves operational efficiency

• Shimadzu analytical balances boast the one-piece UniBloc weighing sensor, which is now even more advanced.

• The response time is reduced to about 1/5 the time of previous models.

• In addition, the UniBloc sensor offers a response time of just 2 seconds, an improvement from 10 seconds with the previous model.

Save Your Operation:

• Equipped with an RS-232C connector, a USB device and a USB host as standard. You can now simultaneously send output to both a computer and printer or connect a USB flash drive, a barcode reader, or an external numeric keypad.

• Transcription errors can be avoided and data can be recorded without a computer.

• USB flash drive: Connecting a USB memory device allows you to record large amounts of weighing data in CSV format. Used in combination with the interval output function, it also enables recording of long-term changes over time.
