UTL 25 Accessories

S 25 KV - 25 F - IL Dispersing tool, for UTL 25 digital

Product Code: IKA0002830200

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

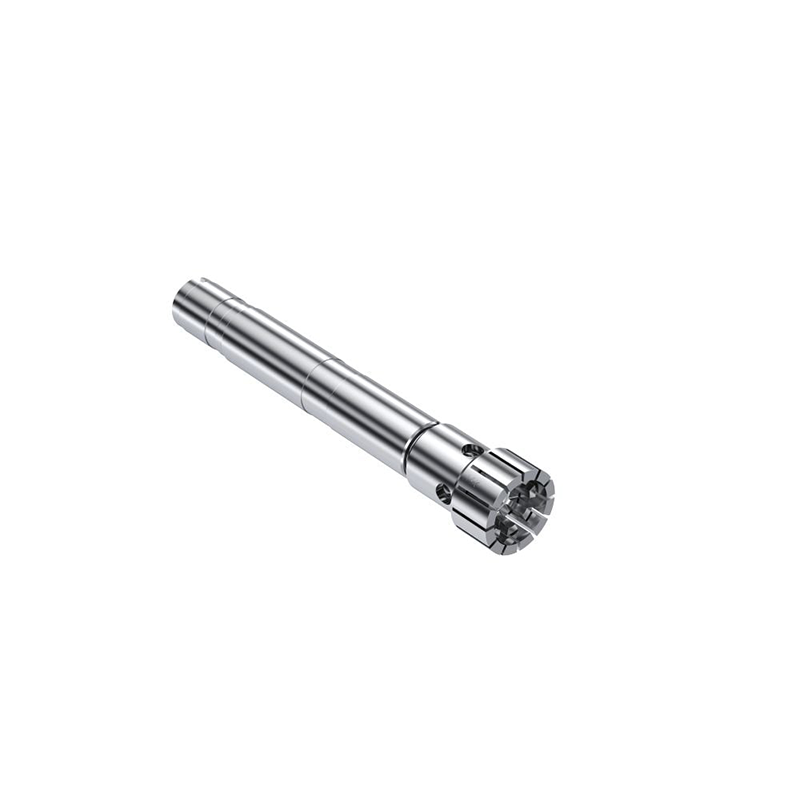

S 25 KV - 25 F - IL Dispersing tool, for UTL 25 digital

Specially designed dispersing tool for use with the UTL 25 digital in-line dispersing unit only. The completely sealed internal system prevents samples from entering the main drive and allows for safe operation in a horizontal in-line position.
Technical Specifications
Supplier IKA
Stator diameter 25 mm
Rotor diameter 18 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 23.6 m/s
Immersion depth 40 - 85 mm
Shaft length 110 mm
Material in contact with medium FFPM, SIC, AISI 316L, AISI 302
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 220 °C
Sterilization methods all methods
Vacuum 1 mbar
Pressure max. 6 bar
Ultimate fineness, suspensions 5 - 25 µm
Ultimate fineness, emulsions 1 - 5 µm
