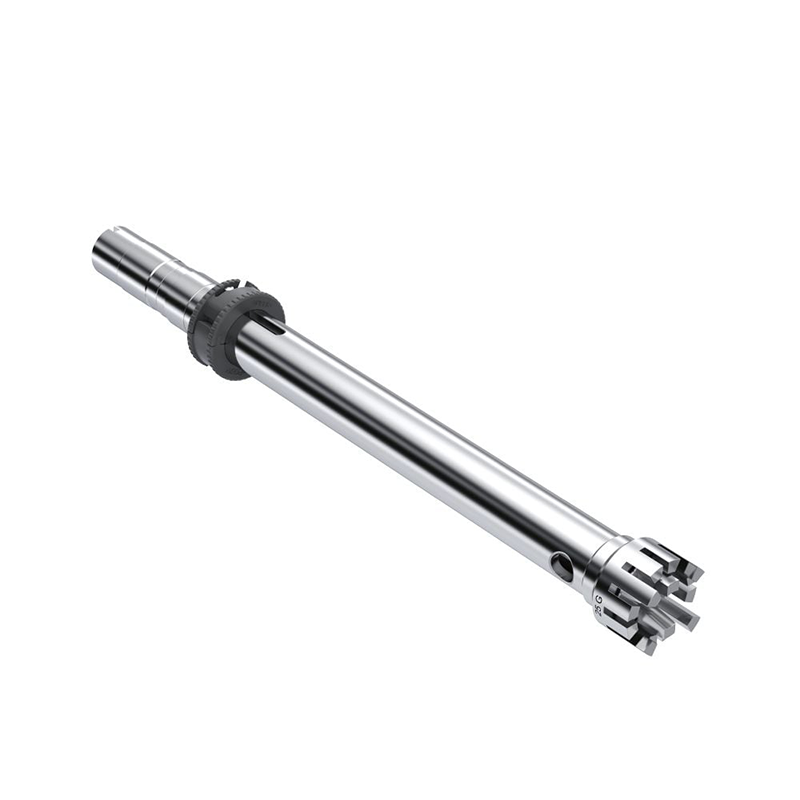

S 25 EC - C - 25 G Dispersing tool, for T 25 easy clean digital/control

The dispersing tool S 25 EC - C - 25 G is suitable for general applications involving high speed and high shear mixing, crushing in liquid, emulsification, particle size reduction in solution and vigorous dissolving of miscible and immiscible solids and liquids in a liquid medium.

As the name "easy clean" implies, the dispersing tools are particularly easy to clean: by simply turning and lowering the clamp, the shaft and rotor can be extended from the shaft until the whole rotor comes out of the stator. Then the shaft tube of the tool can be completely rinsed from inside.

Note: S 25 EC - C - 25 G is only compatible with the dispersers T 25 easy clean digital and control. The temperature sensing function of the T tools can only be activated when used in combination with the T 25 easy clean control.

Technical Specifications
Supplier IKA
Volume range (H2O) 0.05 - 2 l
Stator diameter 25 mm
Rotor diameter 17 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 22.2 m/s
Immersion depth 35 - 150 mm
Shaft length 191 mm
Material in contact with medium AISI 316L, ceramic
pH range 2 - 13
Suitable for solvents yes
Suitable for abrasive substances yes
Working temperature max. 180 °C
Sterilization methods all methods
Ultimate fineness, suspensions 15 - 50 µm
Ultimate fineness, emulsions 1 - 10 µm
Weight 0.4 kg
