T 25 Accessories

S 25 KD - 25 G Dispersing tool, for T 25 digital/T 25 easy clean

Product Code: IKA0020002972

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

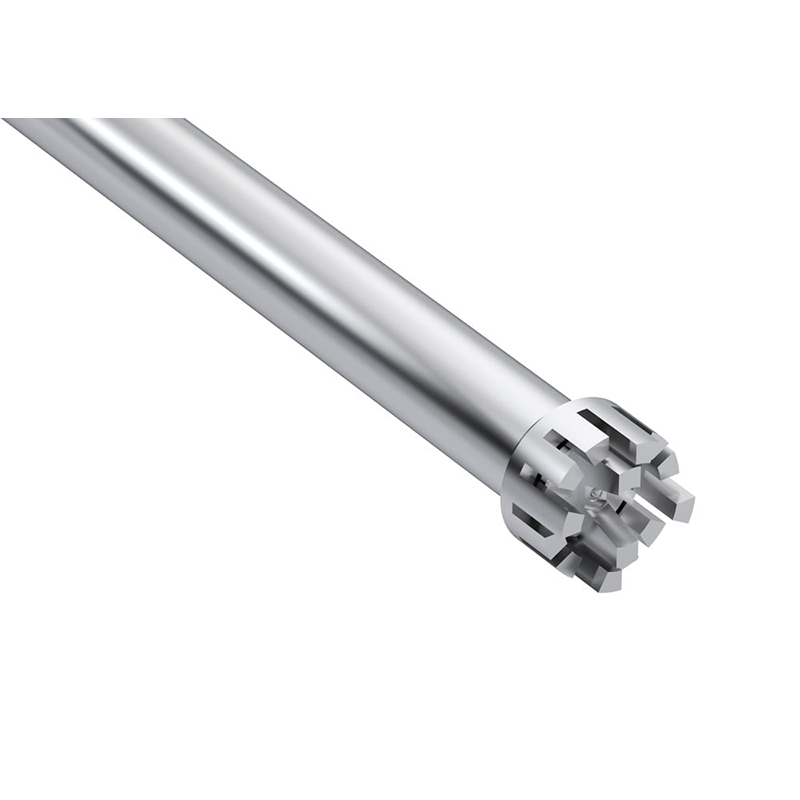

S 25 KD - 25 G Dispersing tool, for T 25 digital/T 25 easy clean
Dispersing tool for the dispersers T 25 digital, T 25 easy clean digital/control

Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISI 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. working temperature [°C]: 150
Shaft length [mm]: 194
Diameter stator/rotor [mm]: 25/17
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 40 - 165
Recommend working range [ml]: 50 - 2,000

Technical Specifications
Supplier IKA
Volume range (H2O) 0.05 - 2 l
Stator diameter 25 mm
Rotor diameter 17 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 22.2 m/s
Immersion depth 40 - 165 mm
Shaft length 194 mm
Material in contact with medium AISI 316L, PTFE, FFPM
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 150 °C
Sterilization methods all methods except hot air
Vacuum 100 mbar
Ultimate fineness, suspensions 15 - 50 µm
Ultimate fineness, emulsions 1 - 10 µm
FDA conformity yes
Weight 0.3509 kg
