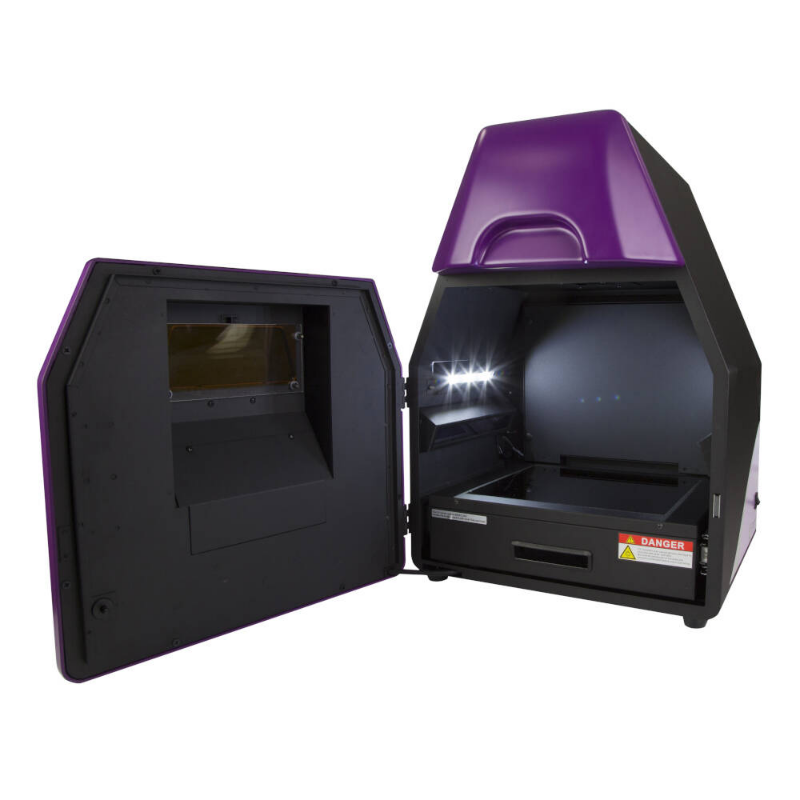

Omnidoc Gel doc system, EtBr Filter, Viewing Window, 560nm, (PC req)

Overview:

The omniDOC from Cleaver Scientific offers high performance gel documentation and analysis at a relatively low cost. By providing many of the features used by leading gel documentation brands, but without the added price premium, each omniDOC system presents a simple but sophisticated imaging solution for most laboratories.

A high resolution 5 mega pixel monochrome camera with slide-out UV transilluminator, and optional blue epi-illumination module and white light table, makes the omniDOC suitable for imaging most fluorescent and colorimetric gels, while a USB port requires a cable to connect the dark room assembly to an external PC for control.

Imaging applications are made easy by a pre-focused camera that requires little or no manual adjustment, while simple one-click image acquisition and analysis software guides the user through every step of the gel documentation process. A front LED indicator panel reveals at a glance the light source in use, whereas a viewing screen with universal filter and spring-loaded cover facilitates safe and convenient gel inspection.

Features:

• Pre-focused 5 mega pixel monochrome camera
• Interchangeable 4 position filter wheel with 620nm as standard
• Viewing pane with universal amber filter
• Internal white LED aids gel positioning
• Slide-out 312nm transilluminator
• Optional white light table
• Optional Blue light modules
• Large 21x26cm filter area
• Resolution: 5 mega pixels (2592x1944 pixels maximum)
• Transilluminator Wavelength: 312nm
• Epi White Light: 6x1W LED (standard)
• Transilluminator Size: 21x26cm
• Lens: 5mm focal length; aperture F1.2
• Sensor Bit-Depth: 12-bit (0-4095 grey levels)
• Emission Filters: 620nm EtBr (standard); optional 520, 560, 580nm filters
• Dark Room Dimensions: 410 x 405 x 570mm (W x D x H)
• Sensor Dynamic Range: 3.6
• Detection Dynamic Range: > 4 orders of magnitude (ng to ug)
• Control Interface: USB to PC
• Operating System Requirements: Windows 7, 8, 10
• Input Voltage: 110-230V
• Display: LED
