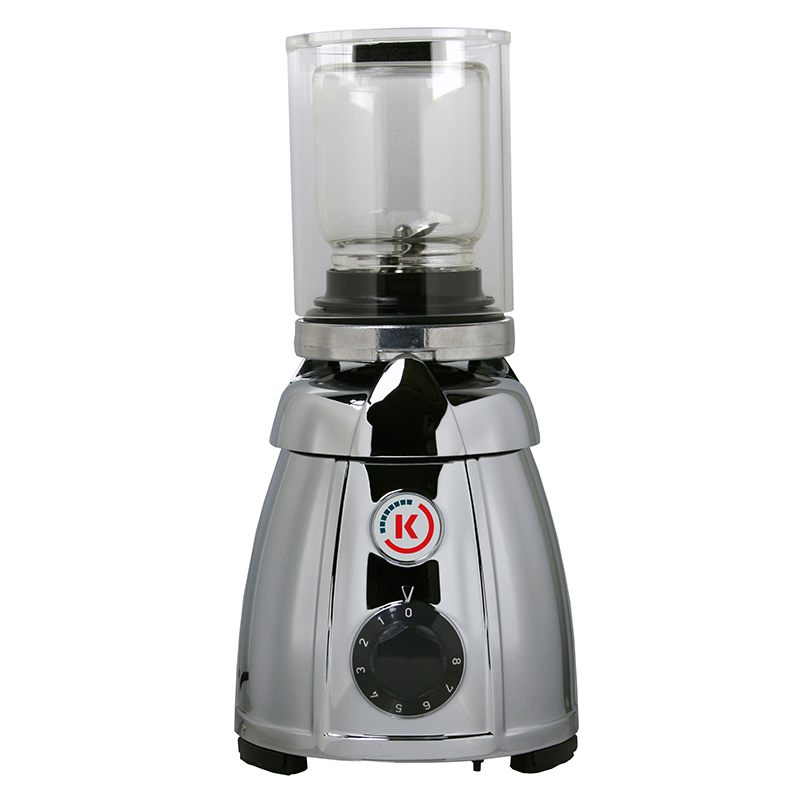

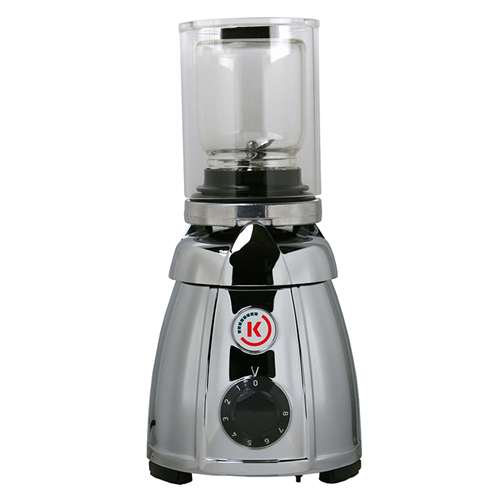

Laboratory Mixer MB 550 230v

Product Code: KIN36010005-230V-EU

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

Laboratory mixer, homogenizing and mixing technology for cuttable, dry or liquid samples with EU-power cable (230 V)

Analysis and quality control requires equipment that is flexible for preparing samples and easy to work with. These mixers are well suited for intense mixing, dispersing, homogenizing, emulsifying and mincing operations for cuttable materials. Simple handling, high user safety and efficiency are just a few advantages offered by these mixers.

BENEFITS
Ergonomics

  • Smooth rotational speed adjustment with integrated on- and off switch
  • Load compensated rotational speed adjustment
  • Switching of mixing attachment and protection cover without tools
  • Operation only possible with security cover and lid in place
  • Variety of sample container designs
  • Vibration dampening quick coupling
  • Very quiet motor with integrated ventilation cooling
  • Integrated load, heat and blockage protection

Results are crucial

  • Production of very fine particle sizes in both liquid and dry mediums: precise analyses require homogeneous samples
  • Efficient sample preparation: through high rotational speeds
  • Flexibility: various sample volumes with different mixing attachments
  • Handling: mounting of mixing attachment and protection cover without tools
  • Longevity: a Swiss virtue
TECHNICAL INFORMATION
  • Min. Volume (ml): 125
  • Max. Volume (ml): 1000
  • Power (W): 550
  • Motor: Collector motor (Class H) / Gearless direct drive / Security system auto-off
  • Speed range: 1000 – 14 000 rpm
  • Sound level: ca. 72 dB(A) at 14 000 rpm
  • Supply voltage: 230 V ± 10 %, 50Hz  / 60Hz
  • Relative humidity (max.): 80 % in storage / 80 % during operation
  • Operating temperature: 0 – 40 °C
  • Protection class acc. to DIN: IP 20
  • ø / H (mm): ø 190mm / 245 mm
  • Weight: 4.4  kg
  • EMC standards: EN 60335-1:1988, EN 60335-2-64:1993, EN 55014:1993, EN 55104:1995, EN 61000-3-2:1995, EN 61000-3-3:1995, EN 60335-2-64:1997
  • Safety standard: Protection Class 1 according to EN 60335-1
Technical Specifications
Supplier Kinematica
